Article number: 14-01-0002

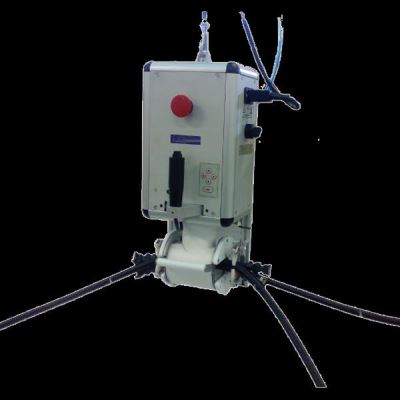

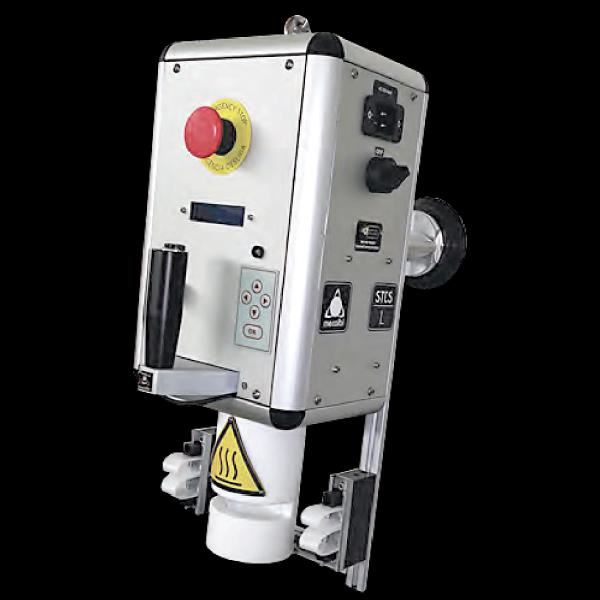

Mecalbi Stcs-L Shrinking Tube Control System
For processing heat shrink tubesScope of application
Heat Shrink TubesThe STCS-L is a machine for processing heat shrink tubes, based on hot air devices. It’s designed for line panel applications and can process one part at a time. All controls and interfaces are integrated in a compact box, which includes the hot air tool and clamps, making it the ideal solution for simple line panel applications that require parameter control.
It is supplied with a standard shrinking chamber of 15 x 50mm, which can be customized.
Working temperature Min.150°C - Max.350 °C
Dimension 345 x 216 x 445 mm
Power supply 230 V 60Hz
Weight 7 kg
CONNECTIONS
Barcode reader DB9 Male
Temperature sensor K type Thermocouple
Power line and hot air 2 IEC Socket
Programming Membrane Keyboard
Interface LCD 16x2, Buzzer and LED
Shrinking chamber 15 x 50 mm
