Cable Length Measuring Cutting and Transferring
×
Project Features
- Measurement Accuracy
- Precise Cut to Length
- Automatic Precise Winding Feature
- Easy Spool/Reel Change
- Flexible Design (Working with Different Reels))
- Fast Programming with Touch Screen
- Customised Design
Applications
| Cutting |
|
×
Technical Data
| Cross Section | 2-50 mm² |
| Range of Lengths | 1-1 000 000 mm |
| Length Accuracy | Repeat accuracy: +/ -0.3% or (2.0 mm +/-0.2% |
| Passage Height | Max. 35 mm |
| Passage Width | Max. 100 mm |
| Feed in Speed | 1000 mm/sn (depends on material) |
| Quantity Range | 1-99 999 pieces |
| Noise Level | < 70 dBA |
| Electrical Connection | 110-240 VAC / 5A 50/60HZ, 320 VA |
| Compressed-air Connection/td> | 6 bar 87 (psi) |
| Dimensions (WxHxD) | 550x500x450 mm |
| Weight (floor load capacity) | 70 kg |
| Work Bench | Not included. Expectations are level, stable and vibration free bearing surface |
| Menu Language | Turkish, English |
Project Features
UniCut is a strong cutting machine to process flat cables / wires up to 50 mm² cross section equivalent copper cable cross section
Detailed Information
- User friendly HMI
- Belt driven feed-in
- Flat blades
- Pneumatic cutting head
- Solid and robust construction,
- Customization opportunities to a certain extend (please consult before ordering
Detailed Information
- It offers list advantages that can stated as followings:
- Minimaxing the waste
- Adaptable to any environment
- Easy to montage
- Reaching the break-even point in short term
Project Features

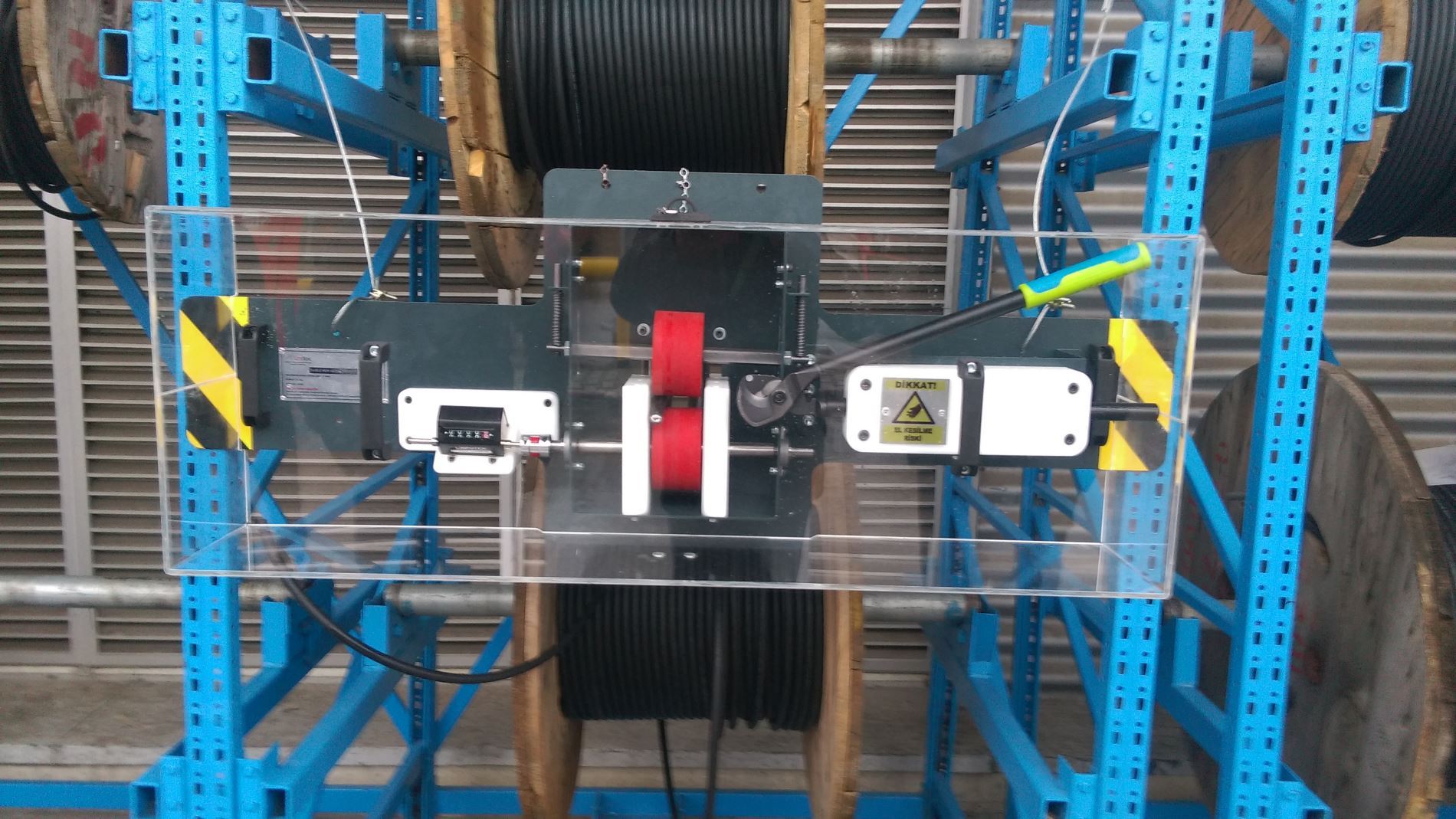

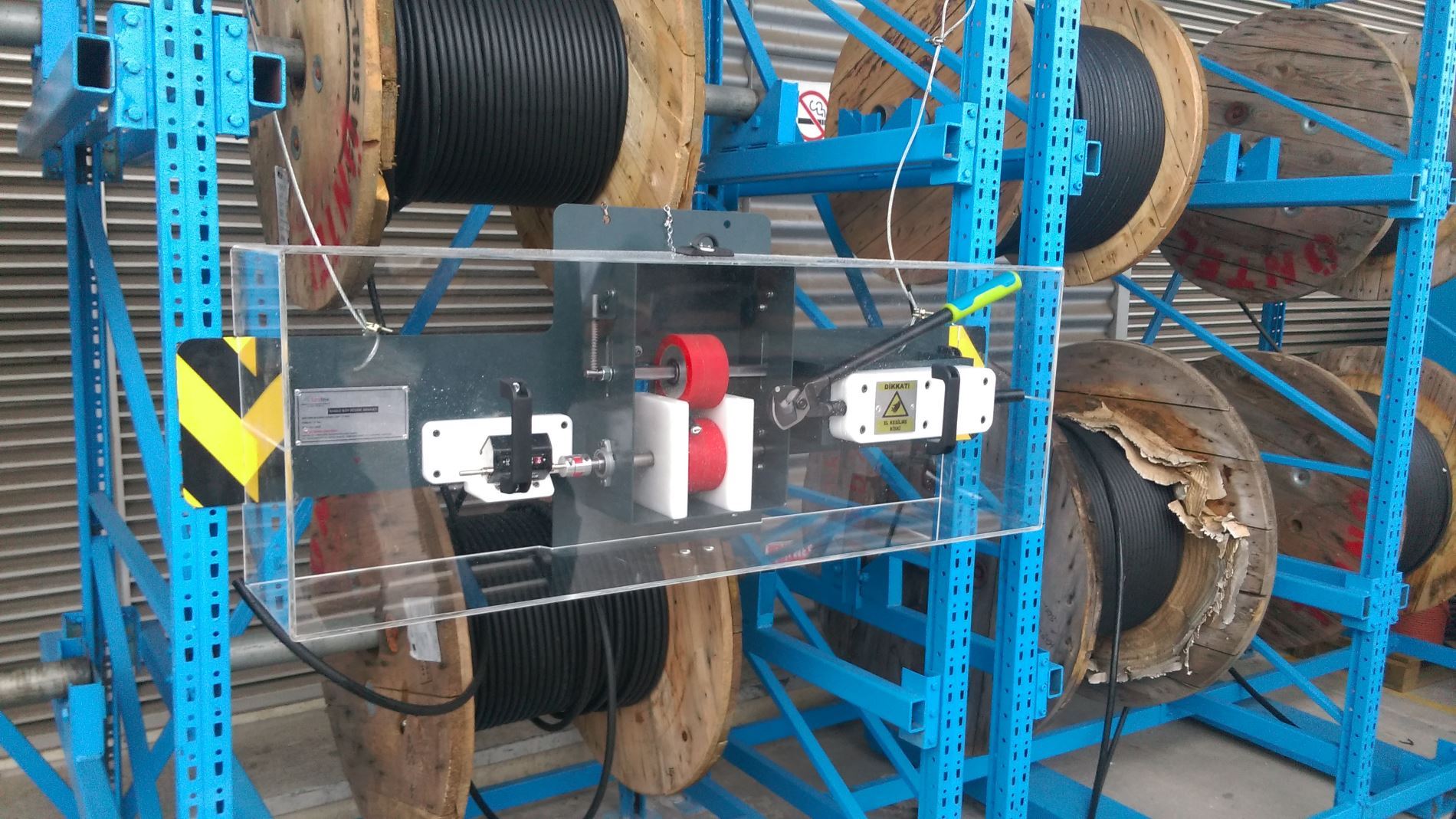

- The system is designed for cutting the cables in desired range by its end users.
- It aims to use in plant whose cable has been already located on the storage rack.
- It offers ease of work while dealing with the huge cable spool.
- The system, which can be suspended, is portable and contains a cable shear a counter that responsible for accuracy.
Detailed Information
- It offers list advantages that can stated as followings:
- Minimaxing the waste
- Adaptable to any environment
- Easy to montage
- Reaching the break-even point in short term
×
Project Features

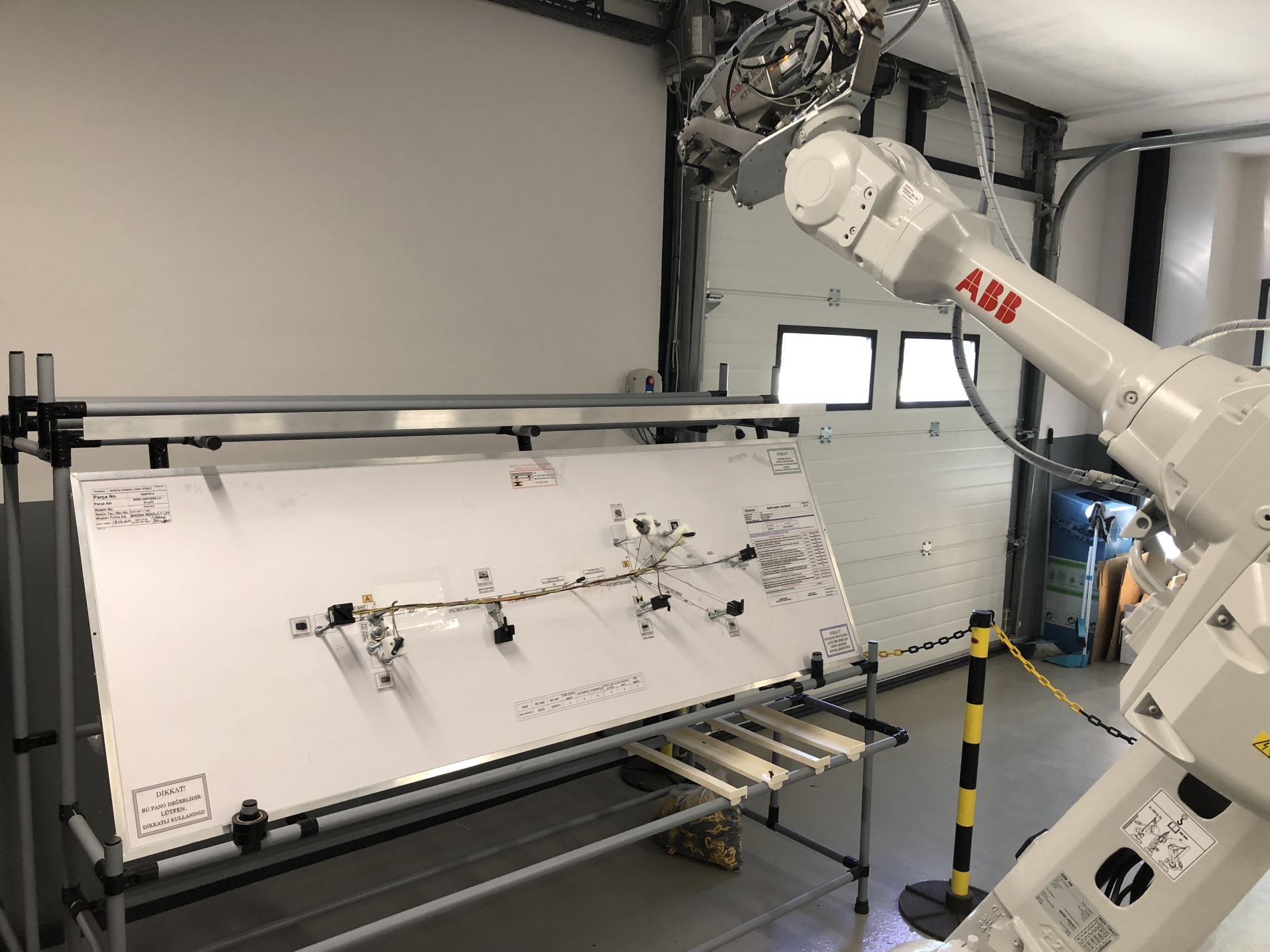

Automation of spot banding, often used in the assembly of cable harnesses: It is being realized with Kabatec Taping Machine applied on ABB IRB 4600 Robot

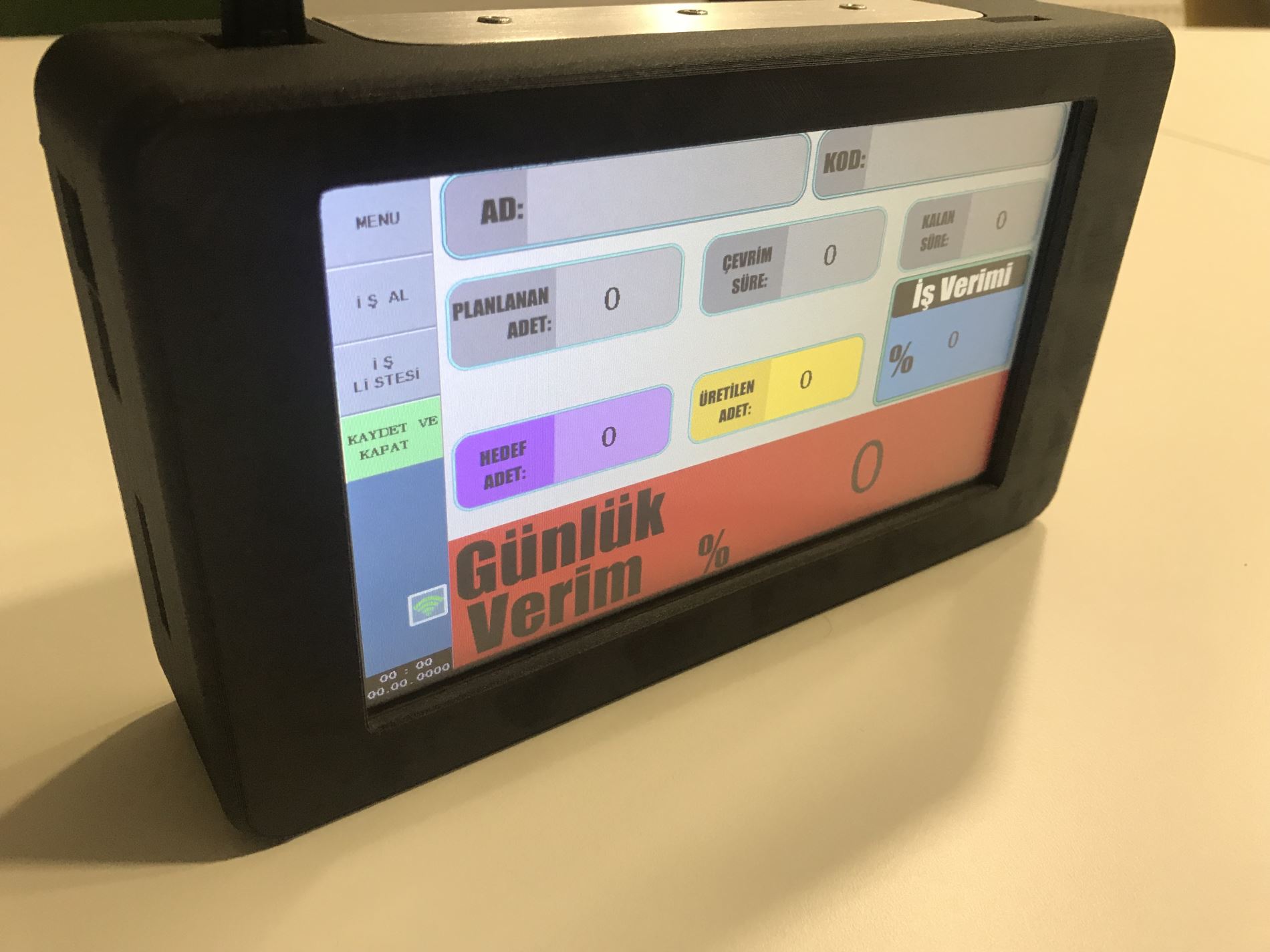

Project Features
- Tracing performance instantaneously

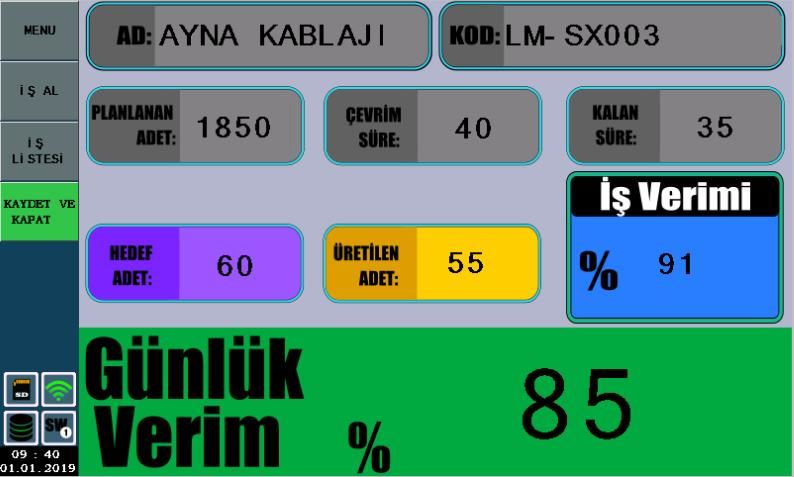

- Simple interface with 7” touch pad
- Easy to use
- IOT Communication
- Upgradeable memory up to 64GB
- Keeping the past work in the memory
- Increasing the flexibility of production
- Adoptable to harness board
Detailed Information
- Metallic parts are anodized coated AL 6082
- Natural Rubber for the suction part
- M6 and M8 threaded pin usage availability right in the center (please specify when ordering
- Easy cleaning (a standard soap or dish washing detergent would be enough for natural rubber cleaning
- Force resistance (in the best/clean conditions
- Vertical force : 30N (from 100 mm distance; when suction cup mounted with 90 degree angle
- Torque force: min 50 N
- Temperature resistance: 150 degree C, 10 min (When exposed to 410 degree C hot gun with 45 degree angle for 100 mm distance)
Project Features
- Solid & robust design
- Ease of use
- Quick installation and rapid reconfiguration
- Optimization of workspace
- Supports perfect alignment on the board
- Aluminium body
- Environment friendly natural rubber suction pad
- Meet automotive standards
Detailed Information
- Metallic parts are anodized coated AL 6082
- Natural Rubber for the suction part
- M6 and M8 threaded pin usage availability right in the center (please specify when ordering
- Easy cleaning (a standard soap or dish washing detergent would be enough for natural rubber cleaning
- Force resistance (in the best/clean conditions
- Vertical force : 30N (from 100 mm distance; when suction cup mounted with 90 degree angle
- Torque force: min 50 N
- Temperature resistance: 150 degree C, 10 min (When exposed to 410 degree C hot gun with 45 degree angle for 100 mm distance)
Detailed Information
- The feeding direction can be adjusted according to the terminal in the reel.
- The number of triggers can be adjusted
- Tension-driven feeding.
- It can be installed without any modifications as the standard reel connections are retained
- Easy to install to the machine and maintenance free.
Project Features

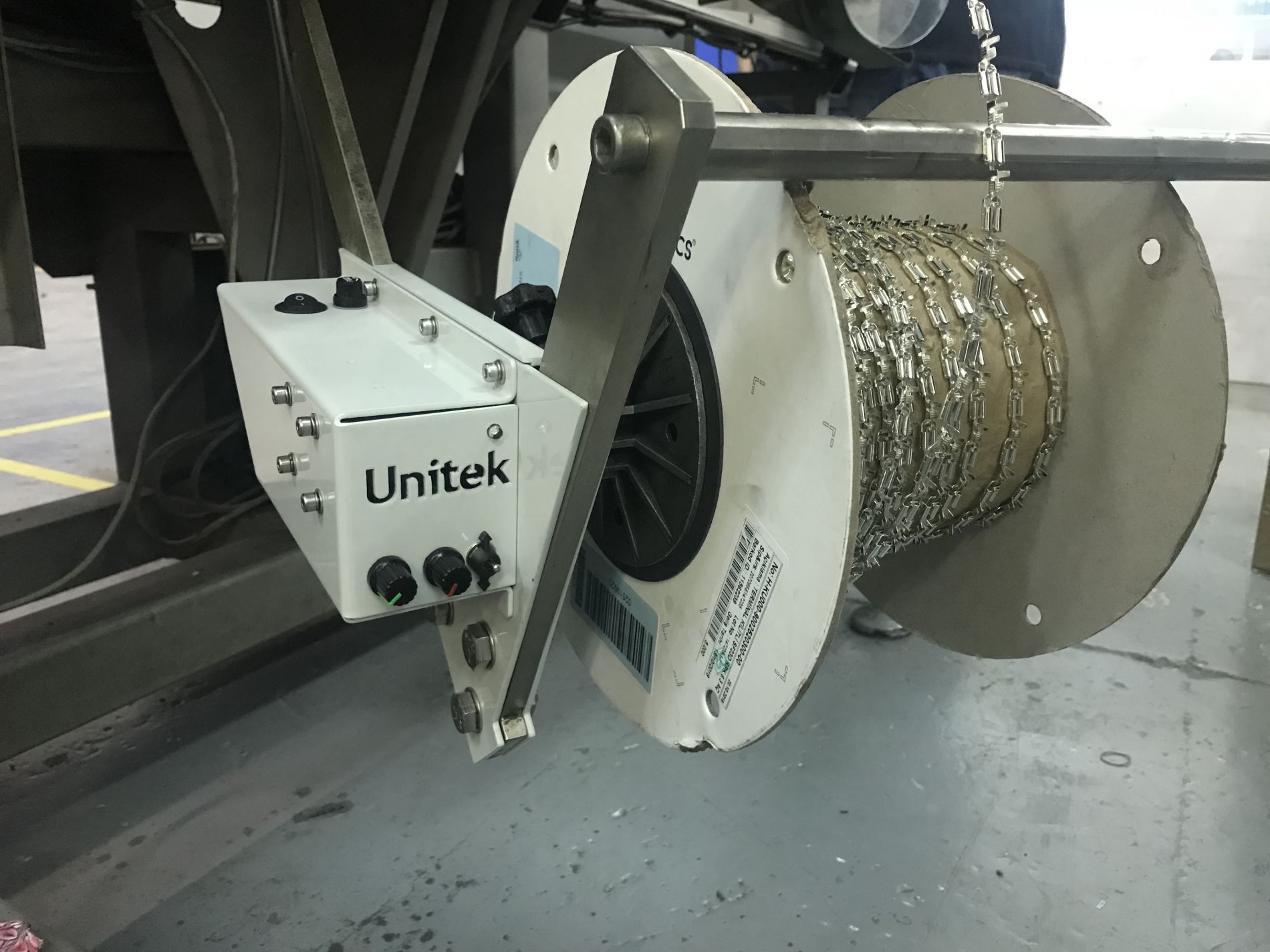

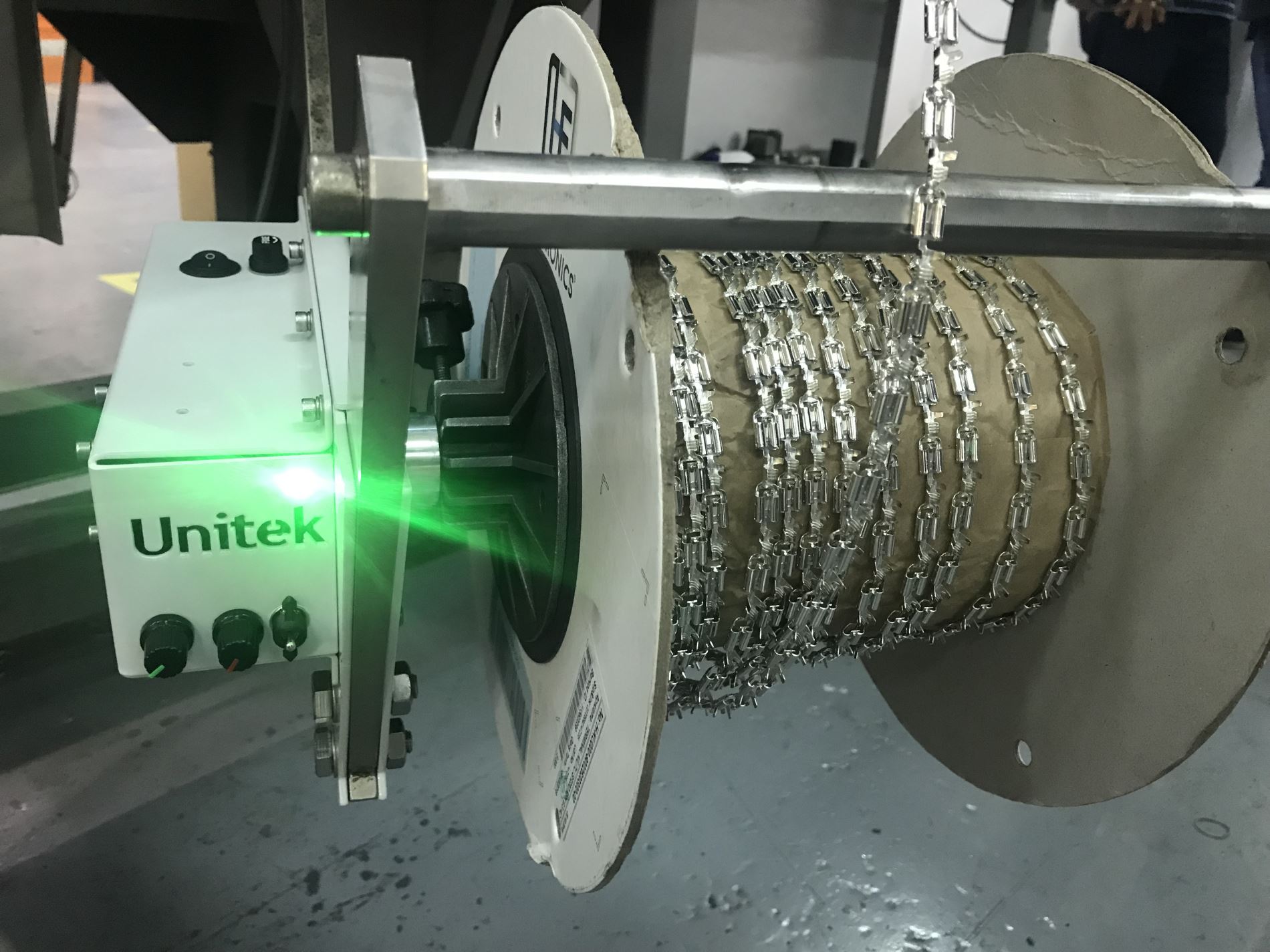

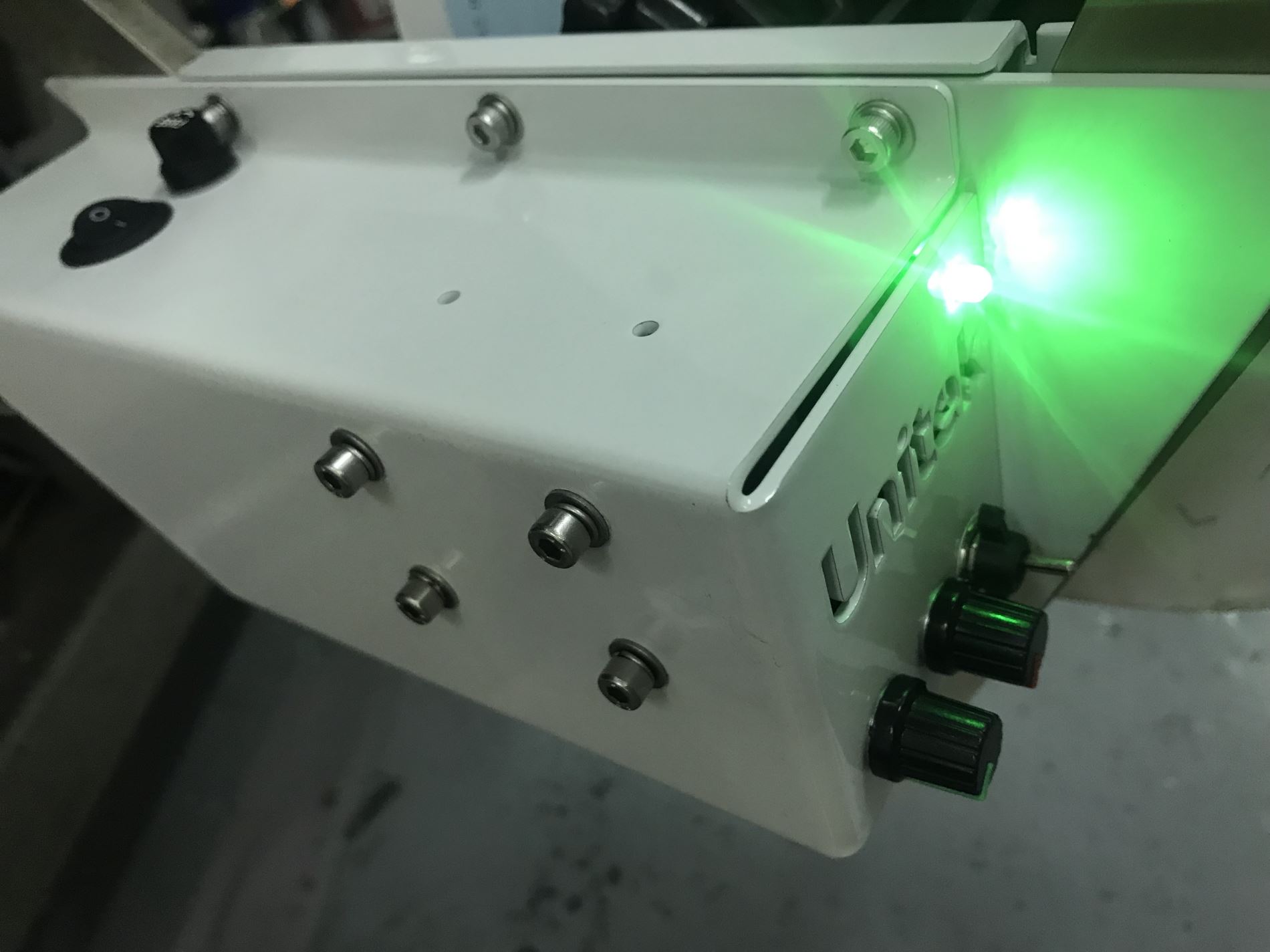

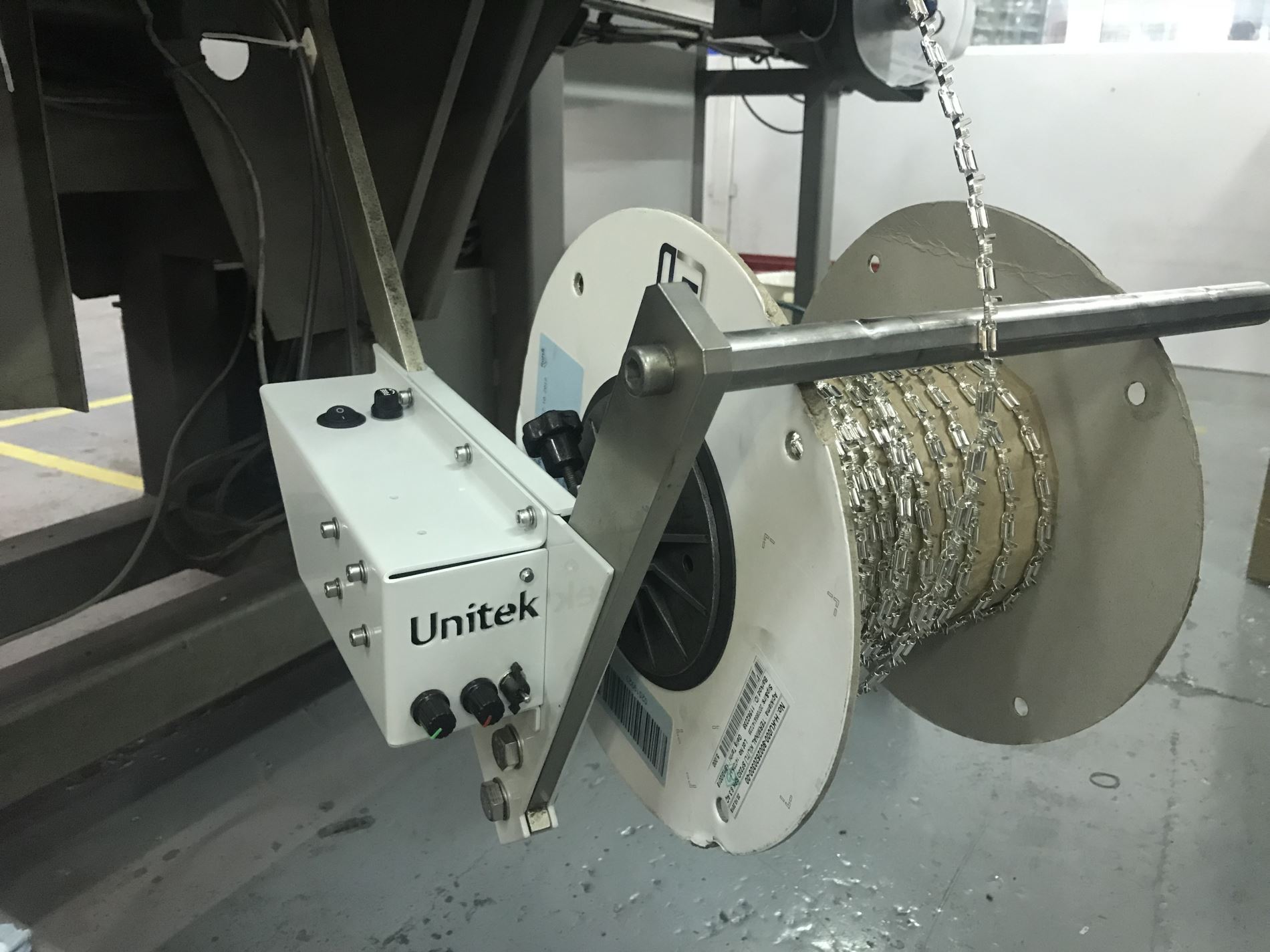

Automatic feeding of the terminal reel to reduce tension on the backfeed presses.
Detailed Information
- The feeding direction can be adjusted according to the terminal in the reel.
- The number of triggers can be adjusted
- Tension-driven feeding.
- It can be installed without any modifications as the standard reel connections are retained
- Easy to install to the machine and maintenance free.
