Article number: 14-01-0021

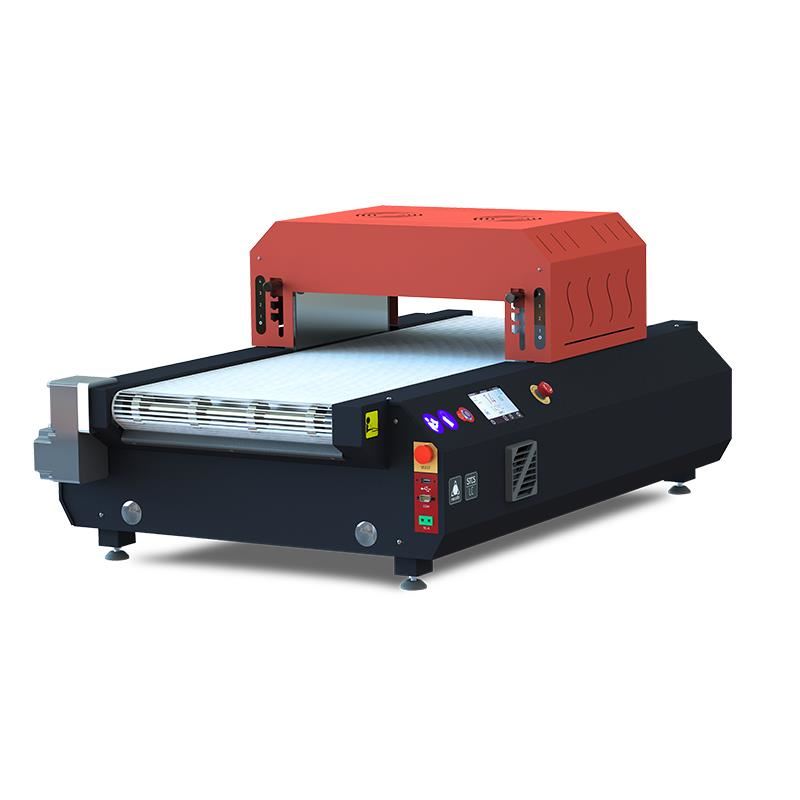

Mecalbi Stcs-Lc Shrinking Tube Control System

For processing heat shrink tubes

Scope of application

Heat Shrink Tubes

The  STCS - LC (Longitudinal  Conveyor)  is a heat shrink system, based on infrared resistors, that is able to process several and different types of parts at the same time.Designed for workbench applications, it  has two operating modes including the usage of references which can also be selected using barcode readers.

Working temperature                 Min.250°C - Max.400 °C

Dimensions                                         1200x715x508mm

Power supply                                   230 V 60Hz

Weight                                                   80kg

Pneumatic

Supply                                                Quick Hold Socket ø8mm

Supply Pressure                                Min:2bar; Max:6bar; Rec:3bar

Connections

Barcode Reader                                     USB

Temperature Sensor                          Type K Thermocouple

Power Line                                          1 IEC Soket

Programming                                     Touchscreen

Interface                                            Touchscreen, Buzzer and LED

Shrinking chamber

Shrinking Tube Diameter                    max.100mm
