Article number: 14-01-0006

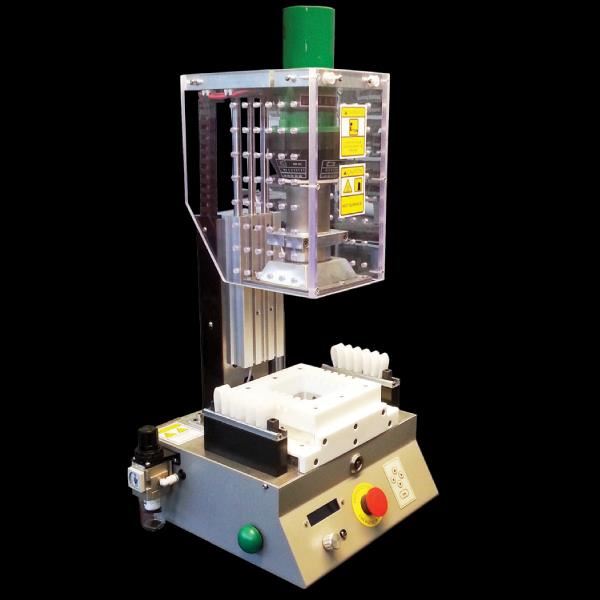

Mecalbi Stcs-Vm Shrinking Tube Control System
For processing heat shrink tubesScope of application
Heat Shrink TubesThe STCS-VM is a machine for processing heat shrink tubes, based on hot airdevices. It’s designed for workbench applications and can process several parts at the same time.
The same machine can be used on several applications, since it’s equipped with a fast exchangeable shrinking chamber system.
The chambers are designed in accordance with the application specifications,making them ideal for those where the assurance of the sleeve’s position is mandatory.
Working temperature Min.150°C - Max.350 °C
Dimensions 315 x 375 x 600 mm
Power supply 230 V 60Hz
Weight 25 kg
Connections
Barcode reader DB9 Male
Temperature sensor K tipi Thermocouple
Power line and hot air 1 IEC Soket
Programming Membrane Keyboard
Interface LCD 16x2, Buzzer and LED
Shrinking chamber Depends on the application
| Heat Shrink Tubes |
|
