Article number: 14-01-0003

Mecalbi Stcs-B Shrinking Tube Control System

For processing heat shrink tubes

Scope of application

Heat Shrink Tubes

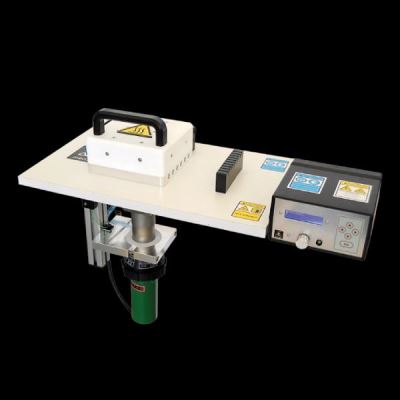

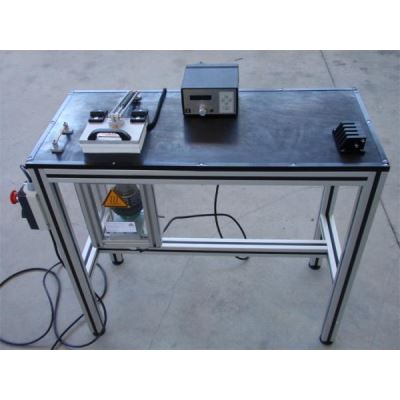

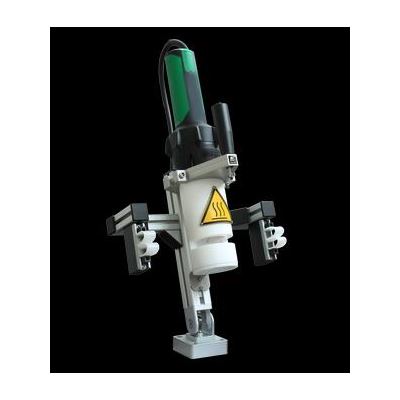

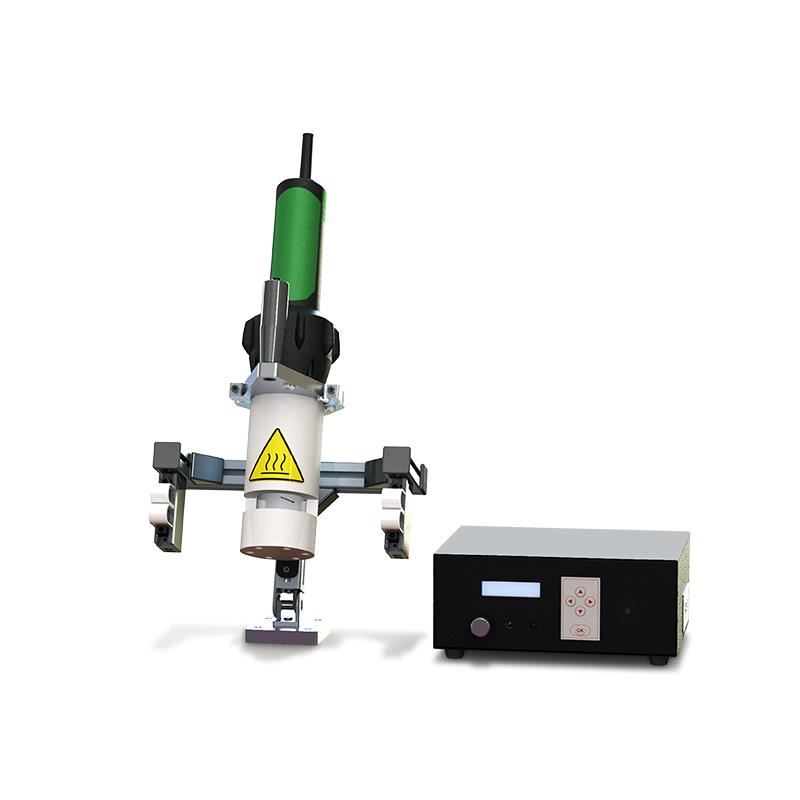

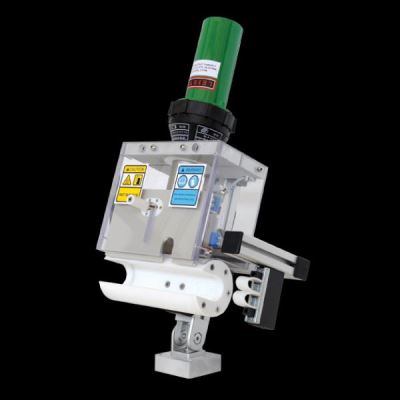

The STCS-B is a machine for processing heat shrink tubes, based  on  hot  air  devices.  It’s  designed  for  workbench applications and can process one part at a time.The  system  is  constituted by a control  module for parameter´s  definition  and  a  hot  air  tool  for  the  shrinking operation. It is supplied with a standard shrinking chamber of 15x50mm, which can be customized.

Working temperature                         Min.150°C - Max.350 °C

Dimensions                                         255x290x530mm

Power supply                                      230 V 60Hz

Dimensions - Control module         252 x 200 x 112 mm

Weight                                                   2,6 kg

CONNECTIONS

Barcode reader                                     DB9 Male

Temperature sensor                              K type Thermocouple

Power line and hot air                        2 IEC Socket

Programming                                     Memran Keyboard

Interface                                            LCD 16x2, Buzzer and LED

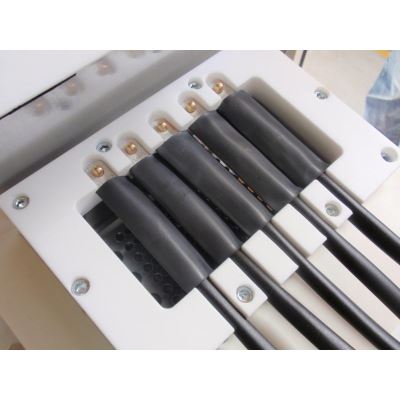

Shrinking chamber                               15 x 50 mm
