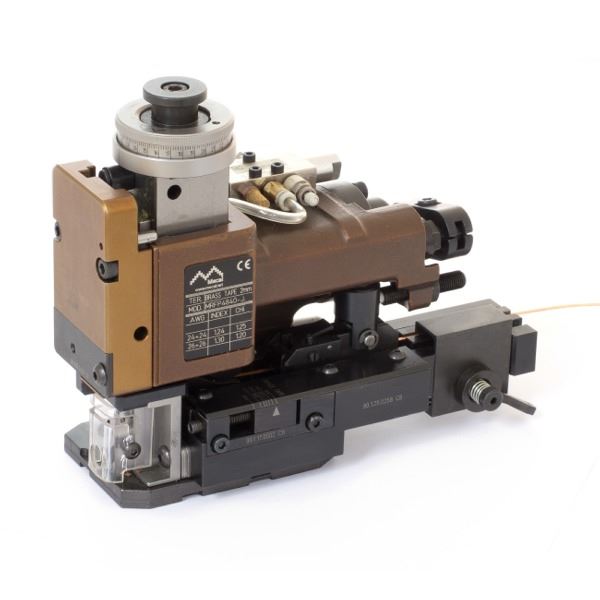

The patented MRFPS - Splicing Applicator is conceived to handle a Continuous Copper Band which is fed, cut, formed and crimped around two side wires in one press stroke.

The crimping result in terms of quality and reliability is simply outstanding. Beside wires, it is used to connect Neon Lamps, Led; Switches, Adaptors and so on.

The Copper Band supplied by Mecal is available in three different widths, i.e. 2mm - 4mm - 6mm, and can be used to crimp from 0.06 up to 6,6 mm² wire section.

The Mecal Splicing Applicator is supplied for nine different wire configurations.

For those who need to crimp the full wire range, it might be of benefit to keep the main applicator Body on the press and change the Conversion Kit only.

The applicator set up is made quick and easy by the very effective engineering of the tool. The applicator feeding system is pneumatic and very easily adjustable whenever a different kit is fitted. The continuous adjusting head with 0.01mm resolution as well as the activating valve are included in the standard configuration. The Splicing Applicator fits to almost any crimping Press having a 135.8mm shut height.
