Article number: IDC MRSP

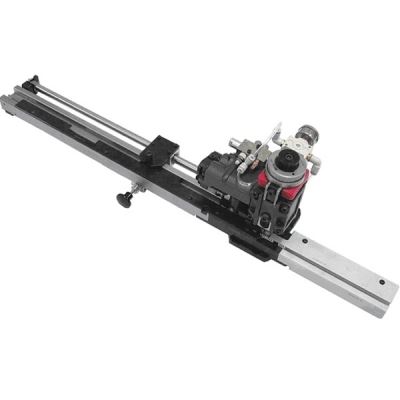

Mecal Idc Mrsp Applicator
IDC ApplicatorScope of application
Idc CrimpingThe MR IDC - IDC Applicator represents a quality low cost solution for crimping Insulation Displacement Connectors. It fits to any standard Press with 135.8mm shut height (however different arrangements are available on request). By means of a pneumatic loader, the connectors are gently fed into the crimping area. It can provide multiple crimping or single crimping (i.e. cavity by cavity), depending on the configuration design and cable structure.
Crimping height 135,8mm(5,346")
Stroke 40/30mm (1,575/1,18")
Terminal pitch 27mm (>1.06”) Max. stroke 35mm
Terminal thickness > 1,5mm
Wire section max.10mm²
Feeding systems 5/6 Bar
Weight 4,1Kg (9,02lb)
Dimension (WxHxD) 400 x 145,5 x 135 mm
Dimension (") (WxHxD) 15.7" x 5,72" x 5.31"
