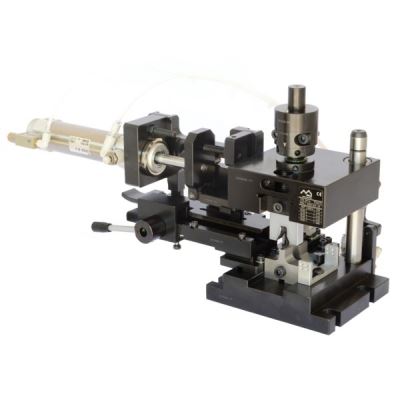

Two-post crimping die for big linked terminals rolled over a reel to be unrolled « left to right », with material thickness above 1.5 mm., wire section up to 75 mm².

Terminal pitch not binding.Continuous crimping height adjusting system. Pneumatic « side-feed » feeding system.

All the wearing parts can be replaced without removing the applicator from the press. Can be fitted to any crimping press having a crimping height (measured from the die mounting plate to the press coupling when at Bottom Dead Center) of 212mm (see Mecal Press P104).

It is supplied with a complete technical documentation containing all the information needed to safely use and correctly maintain the equipment. Upon request, a capability study (including a picture of a sectioned crimped terminal)) can be performed. Cycle counter non available.
