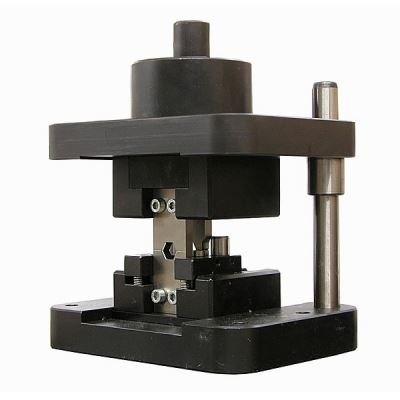

Two-post crimping die for big loose terminals with thickness above 1.5mm., wire section above 75mm². Can be used for coining.

If fitted with the regulating head cod. 951270110, allows for a continuous setting of the crimping height, with a 0.1mm resolution and a 5.8mm range.

All the wearing parts can be replaced without removing the applicator from the press. It is supplied with a complete technical documentation containing all the information needed to safely use and correctly maintain the equipment. Upon request, a capability study (including a picture of a sectioned crimped terminal) can be performed. Cycle counter non available. Must be used with Mecal P200 Crimping Press complete with its specific safety devices. Produced under a quality Management System certified to ISO 9001 (TÜV).
