Article number: FMP

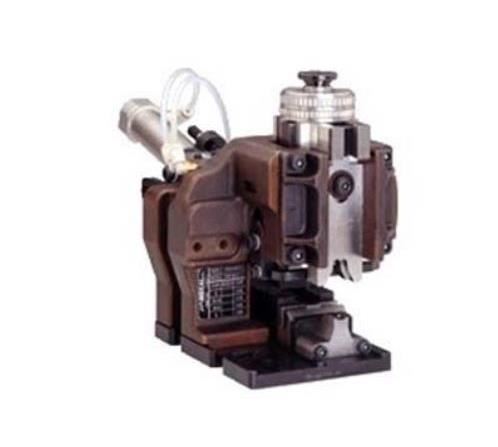

Mecal Fmp Magnum Pneumatic Applicator
Magnum Cable Crimping ApplicatorScope of application
Crimping- Applicator for terminals linked « end to end », with thickness between 1.2mm and 1.5mm, wire section up to 25mm2.
- Pneumatic end-feed feeding system.
- Exclusively fitted with a continuous regulating head having a resolution of 0.02 mm and a 2.7 mm range.
- Non-resettable, 7 digit cycle counter.
- Most of the wearing parts can be replaced without removing the applicator from the press.
- Can be fitted to any crimping press having a crimping height of 135.8mm.
Crimping height 135,8mm (5,346")
Stroke 40/30mm (1,575/1,18")
Terminal thickness 1,2 to 1,5mm
Wire section max 25mm²
Feeding systems 5/6 Bar
Weight 7,4 Kg (16,3 lb)
Dimensions mm W128 x H145,5 x D320mm
Dimensions (") W5,04 x H5,72 x D12,5“
