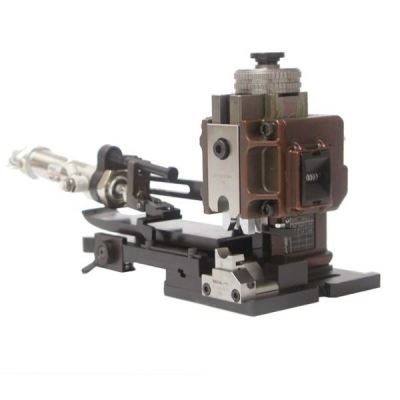

Applicator for linked terminals rolled over a reel to be unrolled « left to right », with thickness between 1.2mm and 1.5mm., wire section up to 25mm².

Pneumatic « left-side feed » feeding system. Exclusively supplied with a continuous regulating head having a 0.01mm resolution and a 2.7mm range.

Complete with a non-resettable, 7 digit cycle counter. All the wearing parts can be replaced without removing the applicator from the press.

Can be fitted to any crimping press having a crimping height (measured from the applicator mounting plate to the press « T » coupling when at Bottom Dead Center) of 135.8mm ± 0.02mm. It is supplied with a complete technical documentation containing all the information needed to safely use and correctly maintain the equipment. Upon request, a capability study (including a picture of a sectioned crimped terminal) can be performed. Produced under a quality Management System certified to ISO 9001 (TÜV).
