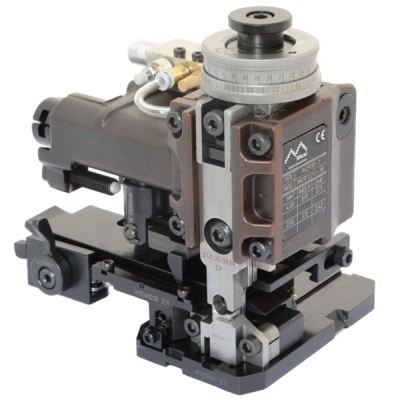

Applicator for linked terminals, with thickness < 1.2mm., terminal pitch > 27mm (if the pitch is lower than 27mm, a pneumatic feeding-system version can be supplied upon request), wire section between 0 and 10mm².

Pneumatic « left-side feed » feeding system for linked terminals on a reel to be unrolled left to right.

Can be supplied either with a continuous or a four-pad regulating head. It is supplied with a non-resettable 7-digit cycle counter.

Can be fitted to any crimping press having a crimping height (measured from the miniapplicator mounting plate to the press « T » coupling when at Bottom Dead Center) of 135.8mm ± 0.02mm, and can be used in both manual (for bench-top press) and automatic (for cut and strip machine) configuration.

It is supplied with a complete technical documentation containing all the information needed to safely use and correctly maintain the equipment.

Upon request, a capability study (including a picture of a sectioned crimped terminal) can be performed.

Compared to the previous models, the Restyling family offers the following features

- the anvil can be replaced without removing the applicator from the press

- as the anvil is made in two parts – wire and insulation – it is possible to replace only the worn-out one

- the mini applicator base-plate is thicker, hence more rigid

- the mini applicator body allows the replacement of the crimpers without removing the ram from the applicator or the applicator from the press

- the pitch adjusting system as well as the centering of the terminal over the anvil are even more user friendly and clearly illustrated in the detailed technical documentation

- the pitch adjusting system as well as the centering of the terminal over the anvil are even more user friendly and clearly illustrated in the detailed technical documentation ; Produced under a quality Management System certified to ISO 9001 (TÜV).
