Article number: 364844
General

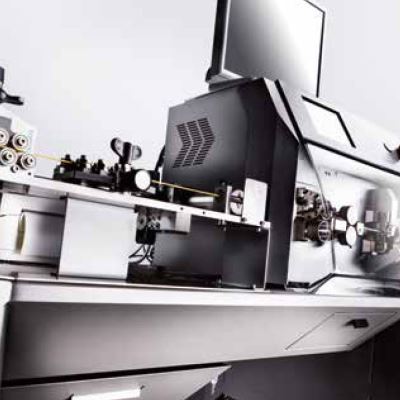

Kappa 315 – powerful up to 10 mm²
The Kappa 315 is fitted with a powerful and robust blade head and has a processing range that comprises cross-sections of 0.05 mm² to 10 mm²:
Description
High-performance, even for small cross-sections.
Küçük çaplı kablolar için bile yüksek performans
Cutting force, high volume output and advanced sensor technology make the Kappa machines the number one choice for automated cutting and stripping, even for smaller wire cross-sections. The machines can be used very efficiently thanks to their simple, intuitive control elements.
Wide range of applications
The Kappa product family stands out thanks to its extremely broad processing range. Its intuitive and simple operation and controls allow you to easily set up even difficult-to-process materials, with extremely fast tool-free changeover to new types of wires.
Fast, simple operation
The intuitive TopTouch operating software guides the user through the process logically. During production, operators have maximum transparency thanks to simple adjustment settings for important parameters. This makes the Kappa machines especially intuitive and safe to operate.
Automatic diameter detection
The sensor-enabled wire diameter and cross-section detection makes it possible to set up and parameterize new wire materials at the push of a button. The unique, tool-free measuring principle reduces time-consuming setup to a minimum, while cut losses are also minimized thanks to the optical wire monitoring. The laser sensor continuously checks and immediately detects wire ends and stripping errors during production.
Versatile integration and interfaces

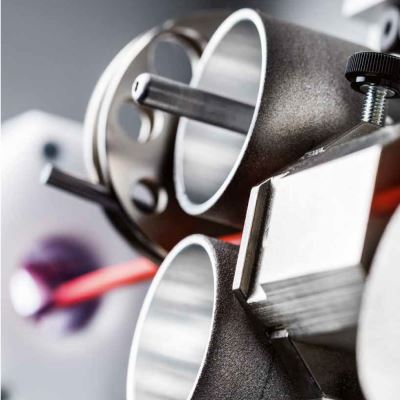

Peripheral devices such as wire feeding systems, markers or deposition units can be integrated easily as standard. Up to four peripheral devices can be controlled depending on the model. The machines also have a USB port for:
Wire cross-section, stranded wires*0.05 – 10 mm²
AWG 30 – 7Max. outer diameter10 mm (0.4 in.)Length accuracyRepeat accuracy
± (0.2 % + 1 mm (0.04 in.)Flat cable processingOptional 12 mm (0.47 in.)Wire length range1 – 800’000 mm (0.039 in. – 874.9 yd.)Short wire lengthsOptional 30 mmMax. wire transport speed2.0 m/s (78.75 in./s)Max. stripping lengthsFull strip
Side 1: 100 mm (3.94 in.)
Side 2: 40 mm (1.57 in.)
Semi strip
Side 1: 999.9 mm (39.37 in.)
Side 2: 999.9 mm (39.37 in.)
Multi-step strip
Side 1: 999.9 mm (39.37 in.)
Side 2: 999.9 mm (39.37 in.)Intermediate stripping
Number and lengthOptionalAutomatic conductor detector
(automatic detection of cut depth,
cable end monitoring)OptionalCable detector
(queue, end and slip monitoring, zero-cut optimization, outside diameter measurement)–Length measurement system–Straightening unitOptionalIOCS interface (expandable)2 (4)USB/ethernetStandardNoise level< 70 dBADrive system
(with motorized closing axis)Single rollerProduction tableOptionalElectrical connection110/230 VAC ±10%
50/60 Hz
300 VAPneumatic connectionOptional for blade cleaningDimensions (W × H × D)465 × 385 × 460 mm
(18.3 × 15.2 × 18.1 in.)Weight25.9 kg (57 lbs)
* Kappa machines can process many conductors outside the indicated cross-section range, however certain extremely hard, tough wires may not be able to be processed even if they are within the indicated cross-section range. If in doubt, we are happy to provide you with samples of your wires.
Cutting | |
Cut Pulled Strands | |
Full Strip | |
Half Strip | |
Precision Cut | |
Multiple Strip | |
Flat Cable / Notching | |
Multi Conductor Cable | |
Intermediate Strip | |
Hot Stamp Marking | |
Inkjet Marking | |
Sequence |
