Article number: V10CR000001

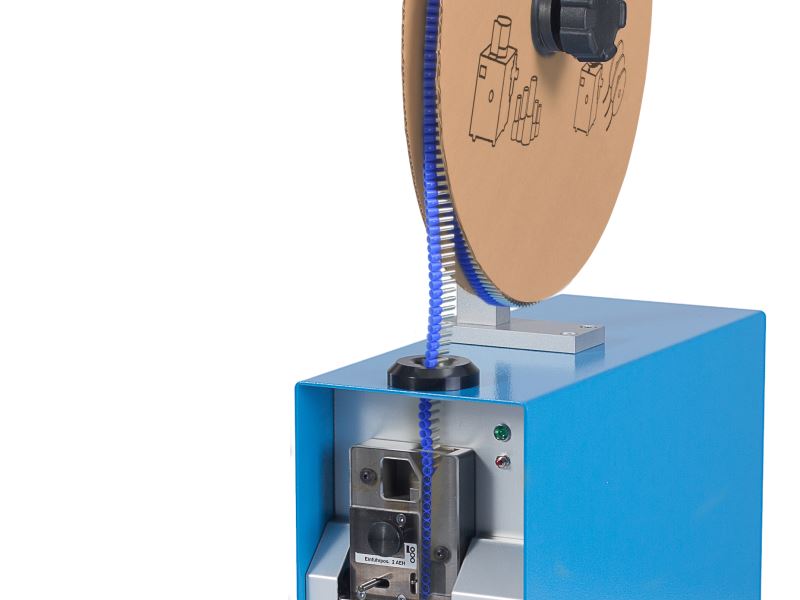

Z+F CRIMPER-G Ferrule Crimper
Crimper-G ferrule crimper machineScope of application
FerruleThe Crimper-G is an electropneumatic, flexible benchtop crimper that processes Z+F
ferrules on reel from 0.5 up to 2.5 mm² (AWG 20 – 14).
A stripped wire can directly be fed in the ferrule through a centering unit.
The crimping process is started by a foot switch.
Crimping range 0.5-2.5 mm² ( 20-14)
Crimping length 8 mm
Infeed length 30 mm
Cycle time approx. 0.6 sn
Power supply 100-240/50-60/30
Air pressure 5,5 bar
Dimensions (wxdxh) 150 x 410 x 620 mm
Weight 13 kg
