Length range: 700 – 4,000 mm (27.6 – 157.5 in)
                       700 – 7,000 mm (27.6 – 275.6 in)
                       700 – 10,000 mm (27.6 – 393.7 in)
Optional 150 mm (5.9 in) End length of twisted wires (with active spot
taping module from 300 mm [11.8 in])*

Length accuracy: +/– (0.1 % + 1 mm [0.04 in])

Stripping lengths: Side 1: 0.1 – 18 mm (0.004 – 0.7 in)
                             Side 2: 0.1 – 28 mm (0.004 – 1.10 in)
with short open ends processing set
                             Side 2: 0.1 – 28 mm (0.004 – 1.1 in)
with open ends standard processing set

Wire cross-sections**: 2 × 0.22 mm² – 2 × 1.0 mm² (AWG 24 – 17)
with short open ends processing set
                                   2 × 0.22 mm² – 2 × 2.5 mm² (AWG 24 – 14)
with open ends standard processing set
Optional with feasibility test from 0.13 mm² (AWG 26)

Open wire ends* (specifications without end processing)
15 – 99 mm (0.6 – 3.9 in) with short open ends
processing set
30 – 99 mm (1.2 – 3.9 in) with open ends
standard processing set
30 – 125 mm (1.2 – 4.9 in) with long and unequal
length open ends processing set on side 1

Pitch length:  5 – 80 mm (0.2 – 3.2 in) programmable
Accuracy: ±10 %, max. ±5 mm (0.2 in)

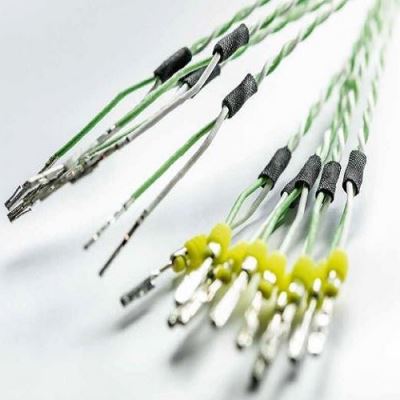

Spot tape position: Last intersection point (default position)
of 0.0 mm – 80 mm (0.0 – 3.1 in) in direction of wire center

Wire draw-in speed: max. 5 m/s (16.4 ft/s)
Noise level: < 80 dB (without crimp module)
Electrical connection: 3 × 208 – 480 V / 50 – 60 Hz / 10 kVA
Compressed air connection: 5 – 8 bar (73 – 116 psi)
Recommended operating pressure***:6 ± 0.5 bar (87 ± 7.25 psi)

Weight: incl. 2 crimp and 2 seal modules

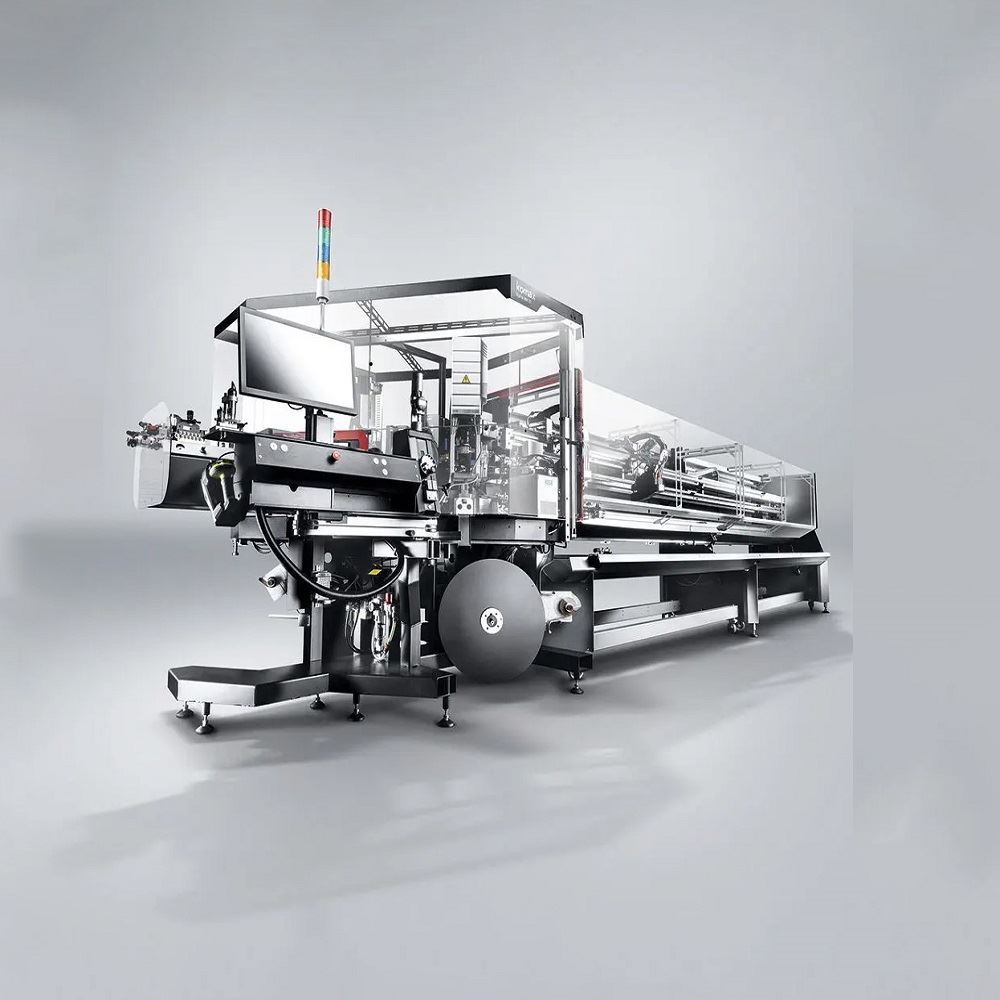

             Sigma 688 ST / 4 m: approx. 2,800 kg (6,173 lb.)
             Sigma 688 ST / 7 m: approx. 3,400 kg (7,496 lb.)
             Sigma 688 ST / 10 m: approx. 4,000 kg (8,818 lb.)
