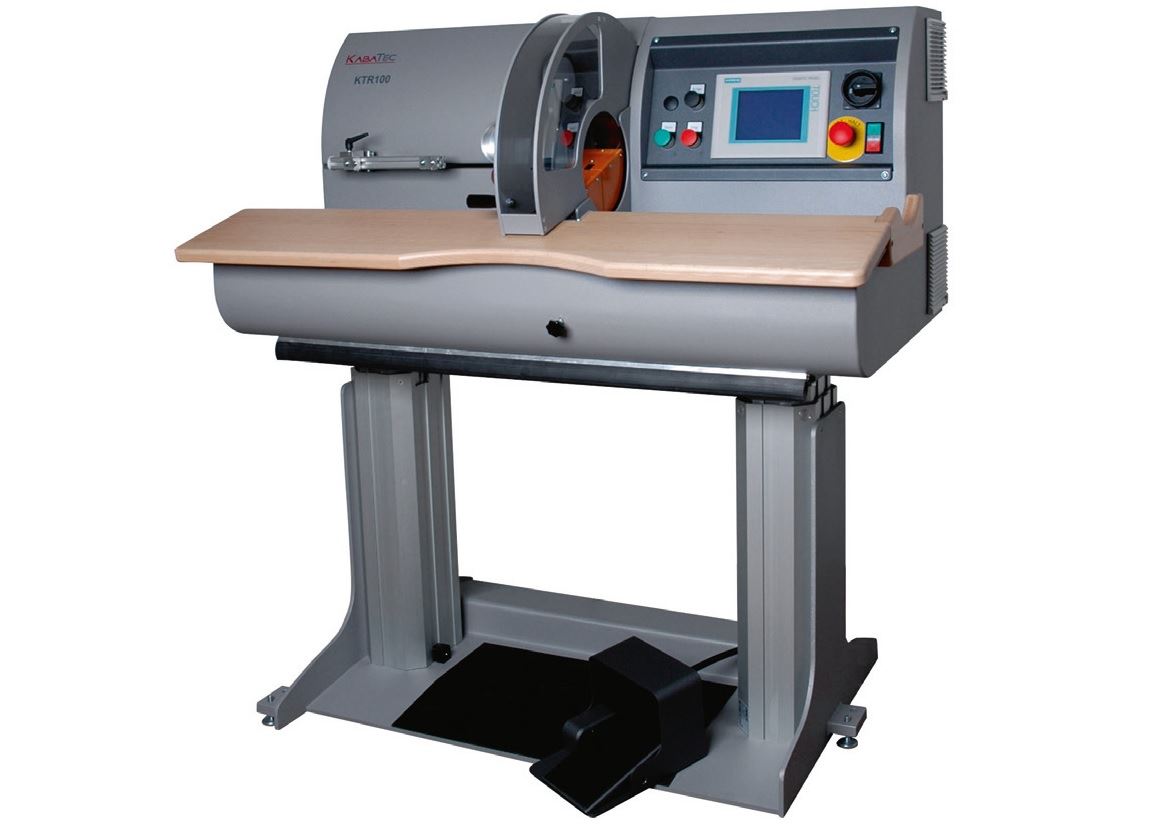

KABATEC KTR 100

Article number: 93002

Taping machine

Overlap Spiral Taping Spot Bundle Insulate Marker

Request proposal

Highest process quality

• Reproducible taping quality through program control

• Consistent tape tension and tape guidance guarantees wrinkle-free taping compared to manual processes

• Maintains the specified overlap thanks to the linearand roll-feed

High productivity with simple and complex cable harnesses

• Efficient processing of cable harnesses with up to 20 program steps

• Winding speed two to three times higher compared to manual tools

• Up to 25% material savings compared to manual processing

Highly user and maintenance-friendly

• Simple operation thanks to easy program structure and touchscreen entry

• Low-maintenance and reliable machine design

Available with open winding head

• Economical processing of long cable harnesses with long branches

• Significantly faster handling for longer cable harnesses compared to a closed winding head

Application Taping cable harnesses and modules

Tape material All conventional adhesive tape

Tape width 9 – 19 mm

Tape outer diameter up to 180 mmTape core diameter 1.5" and 3"

Rotational speed 100 – 1000 U/min, speed control continuously via foot pedal

Winding head Open or closed placed automatically in tape attachment position

Feed rate 0 – 70 rpm, continuously adjustable roll-feed

Tape-end detection Contactless

Feed operation Pneumatic / 6 Bar

Cable harness diameter up to 20 mm

Connection 3-phase 230V/400V-50Hz,

Dimensions (W × H × D) 1300 x 1400 x 850 mm

Weight 280 kg

KABATEC KTR 100
