Article number: 0083000

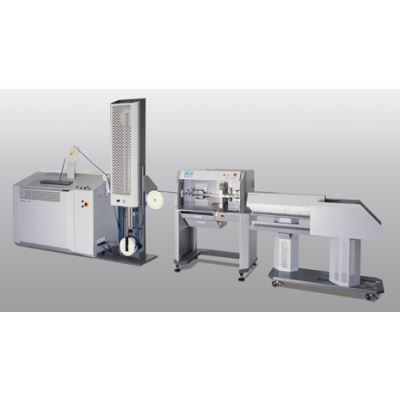

Komax Dps 375 Wire Handling
Dps 375 Deposit systemThe variable dps 375 wire deposit system has a mobile frame and active wire ejection for process-orientated use. This model comes with programmable batch size sorting, making it the perfect companion for an automatic Kappa cut-and-strip machine of the third generation. Wires up to 3.5m in length are sorted and deposited.
- Reasonably-priced deposit unit
- Mobile for convenient use in production
- Programmable batch size sorting
- Cable lengths up to approx. 4 m
- Diameter range 2 – 35 m
Conductor diameter max. 35mm
Conductor length approx. 150-3500mm
Compressed air connection 6bar
Dimensions(WxHxD) 1890x1150x460mm
Weight approx. 92kg
Use
dps 375
K 206 / 206-S x
Kappa 310 x
Kappa 320 x
Kappa 322 x
Kappa 330 x
Kappa 350 x
