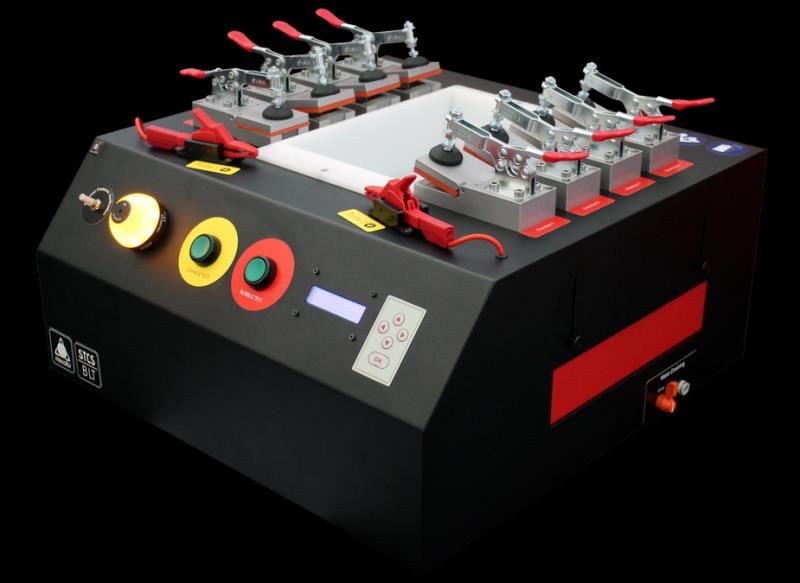

The STCS-BLT is a manually operated pneumatic device, intended to be used as a convenient “in-process” sampling technique for testing sealed splices.

It has a built-in current leakage detection system that detects splice’s insulation resistance.

It can be supplied with special shrinking chambers for big cross-section cables.

• Automatic air pressure adjustment
• Selection of which chambers receive test pressure, for air economy
• Configurable test time and test pressure
• Built-in current leakage detection system to measure electrical resistance, using a megohmmeter
• Leakage failure detection when resistance under 1 x 108 ohm
• Bubble and leakage test counter; Manual internal pneumatic calibration
• Password protected menu; Error lock (password protected)
• Pneumatic inlet failure detection; Interchangeable system language, including: English, Portuguese, French and Spanish (others on demand)
• Minimal skills required for operating with the machine
• Use of special chambers for big cross-section cables
