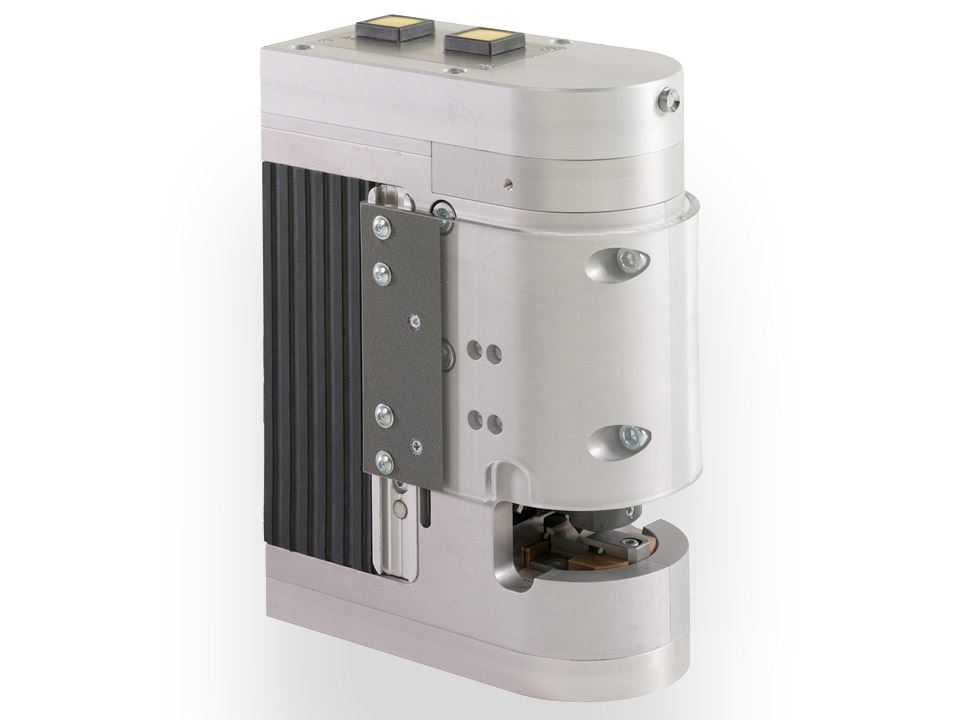

The patented testing system for the determination of the welding quality of ultrasonically welded inline-, endsplices and compacted wire ends is best suited for use at the assembly station.
Through linkage with a PC of a Schunk Ultrasonic Welding System test plans can be automated, and the results stored and statistically evaluated. For example, in production, tests can be randomly generated or be carried out at defined intervals. A pre-setting of the corresponding test intervals can.

When the cross section of the welding to be tested is entered, all of the test parameters are automatically called up.

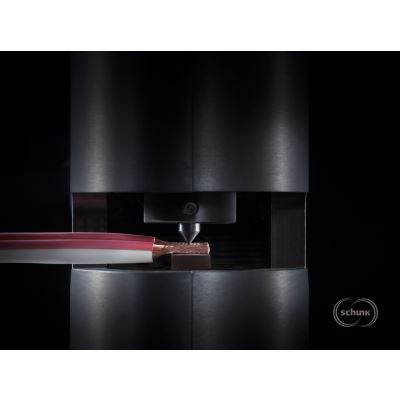

The SPLICE-Checker allows a nondestructive test of ultrasonically
welded splices from 1.5mm² to 20 mm². This considerably reduces
costs that are caused by destructive test methods.

Through linkage with a PC of a Schunk Ultrasonic Welding System test plans can be automated, and the results stored and statistically evaluated. For example, in production, tests can be randomly generated or be carried out at defined intervals. A pre-setting of
the corresponding test intervals can be done through the visualization software.

The selected splice which is to be tested can be displayed to the user through a visual and an acoustic signal. After the test is completed, the welding process is automatically cleared to resume, in the case of a positive test result, or an error is reported in the case of a fault.
