Article number: 14-01-0022

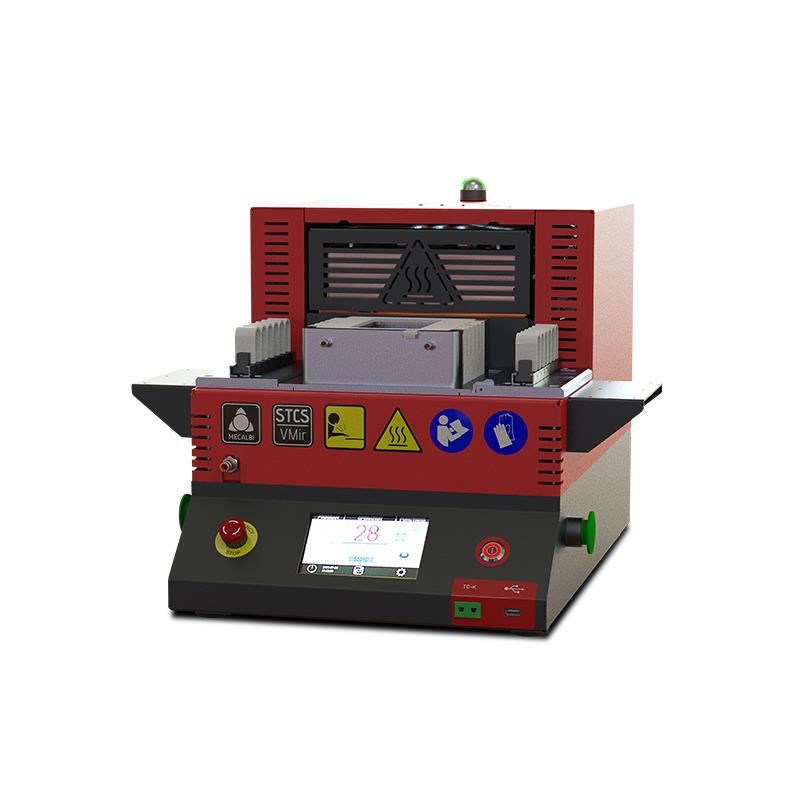

Mecalbi Stcs-Vmir Shrinking Tube Control System

For processing heat shrink tubes

Scope of application

Heat Shrink Tubes

The STCS-VMir is a heat shrink system, based on infrared technology. It’s designed for workbench applications and can process several parts at the same time.
The same machine can be used on several applications, since it’s equipped with a fast exchangeable shrinking chamber system.
The chambers are designed according with the application specifications, making them ideal for special applications.
The system was designed to ensure optimal conditions for CAN processing (normal and end splices), but can also be used for any given application.

WORKING TEMPERATURE                 Min.250°C - Max.550 °C

DIMENSIONS                                         490x445x308mm

POWER SUPPLY                                    230 V 60Hz

WEİGHT                                                   29kg

PNEUMATIC

Supply                                                Quick Hold Socket ø8mm

Supply Pressure                                Min:2bar; Max:6bar; Rec:3bar

CONNECTIONS

Barcode Reader                                     USB

Temperature Sensor                          Type K Thermocouple

Power Line                                          1 IEC Soket

Programming                                     Touchscreen

Interface                                            Touchscreen, Buzzer and LED

SHRINKING CHAMBER

Shrinking Chamber Max                    120x120mm

Shrinking Tube Diameter                    max.20mm
