Article number: 14-01-0025

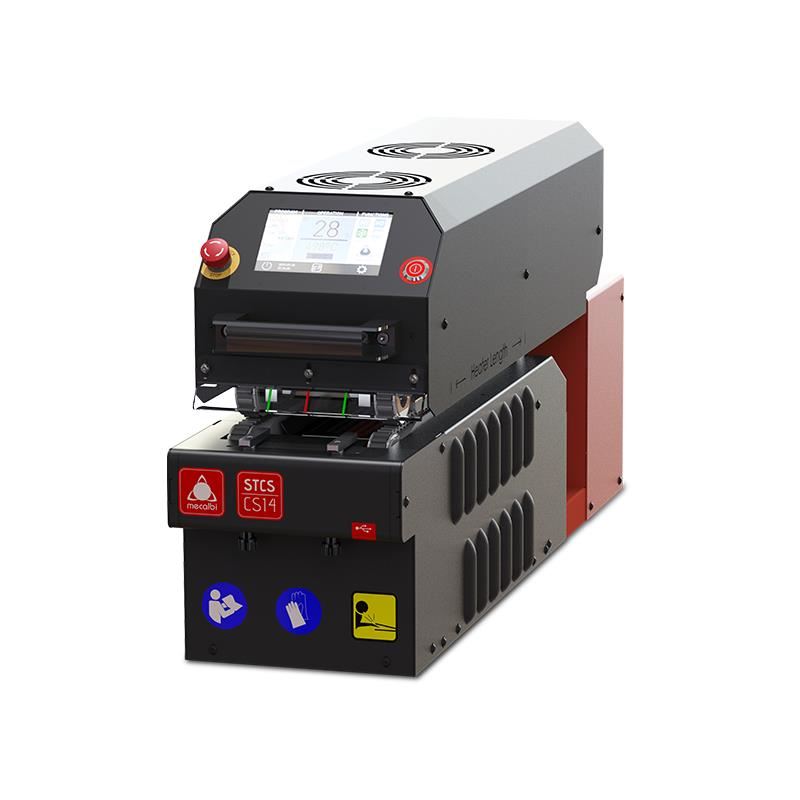

Mecalbi Stcs-Cs14 Shrinking Tube Control System

For processing heat shrink tubes

Scope of application

Heat Shrink Tubes

Mecalbi Stcs-Cs14 is a heat shrink system designed as a short conveyor based on infrared resistors.

It's made for workbench applications and can process several parts at the same time.

This compact and lightweight machine is ideal for large production requirements since the output is only determined by the pace of the operator.

Working temperature                 Min.300°C - Max.550 °C

Dimensions                                         775x214x400mm

Power supply                                   230 V 60Hz

Weight                                                   31kg

Connections

Barcode Reader                                     USB

Air Pressure                                       5-6 Bar

Electrical Grid                                      1 IEC Soket

Programming                                    Touchscreen

Interface                                            Touchscreen, Buzzer and LED

Shrinking Chamber

Min. Cable Lenght                            215mm

Tube Diameter Max.                         25mm

Tube Lenth Max.                             70mm

Cablo Cross Section Max.               10mm
