Article number: 14-01-0008

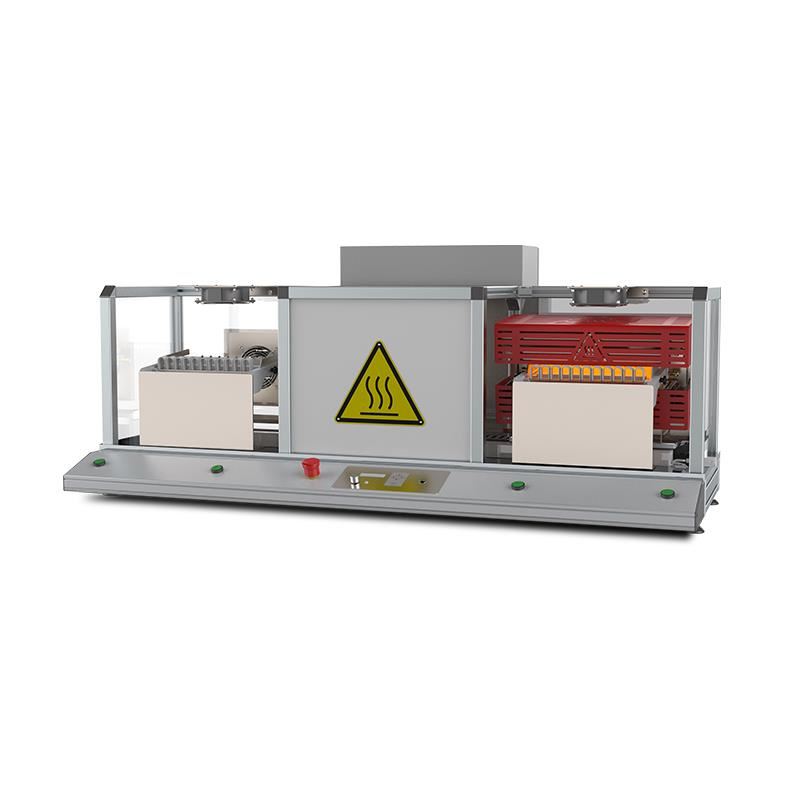

Mecalbi Stcs-Rt Shrinking Tube Control System

For processing heat shrink tubes

Scope of application

Heat Shrink Tubes

The  STCS-RT  is  a  machine  for  processing  heat  shrink tubes, based on infrared resistors. It’s designed for workbench applications and can process several parts at the same time. The system has two independent workstations (with independent shrinking parameters) and a movable oven. Each  workstation  is  provided with support for tooling fixtures that can be used on a variety  of small comp onents, such as ring terminals and small connectors.

Working temperature                         Min.400°C - Max.550 °C

DImensions                                          1500 x 780 x 525 mm

Power supply                                       230 V 60Hz

Weight                                                    123kg

Connections

Barcode Reader                                     DB9 Male

Power Line                                          1 IEC Soket

Programming                                     Keyboard

Interface                                            LCD 16x2, Buzzer and LED

Shrinking chamber

Resistors Dim. (heat area)                  95x285mm

Resistors Power                                 1650W
