Article number: 14-01-0007

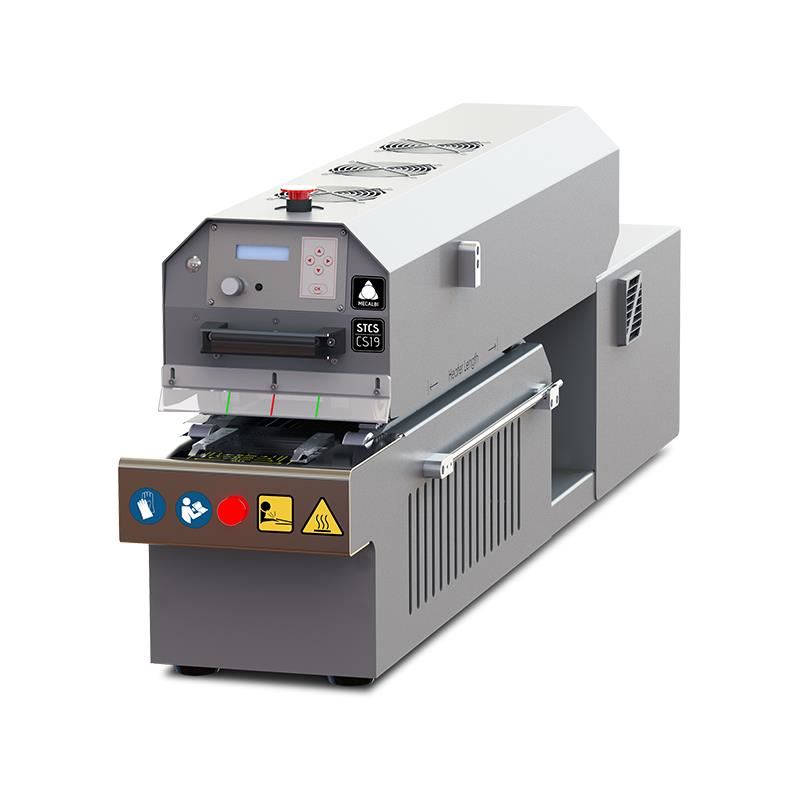

Mecalbi Stcs-Cs19 Shrinking Tube Control System
For processing heat shrink tubesScope of application
Heat Shrink TubesThe STCS-CS19 is a machine for processing heat shrink tubes, based on infrared resistors. It's designed for workbench applications and can process several parts at the sametime.
It has several operating modes, including the use of references which can be selected by barcode readers.
Once the reference is selected, the machine automatically adjusts all parameters to the pre-programmed values, including shrinking time (conveyor's speed).
Working temperature Min.300°C - Max.600 °C
Dimensions 1540 x 284 x 545 mm
Power supply 230 V 60Hz
Weight 100 kg
Connections
Barcode reader DB9 Male
Power line 1 IEC Soket
Temperature sensor K Type Thermocouple
Programming Keyboard
Interface LCD 16x2, Buzzer and LED
Shrinking chamber
Resistors dim. (heat area) 95 x 285 mm
Resistors power 1650 W
Distance between belts 140 mm
Shrinking tube diameter max. 30 mm
