Article number: 14-01-0011

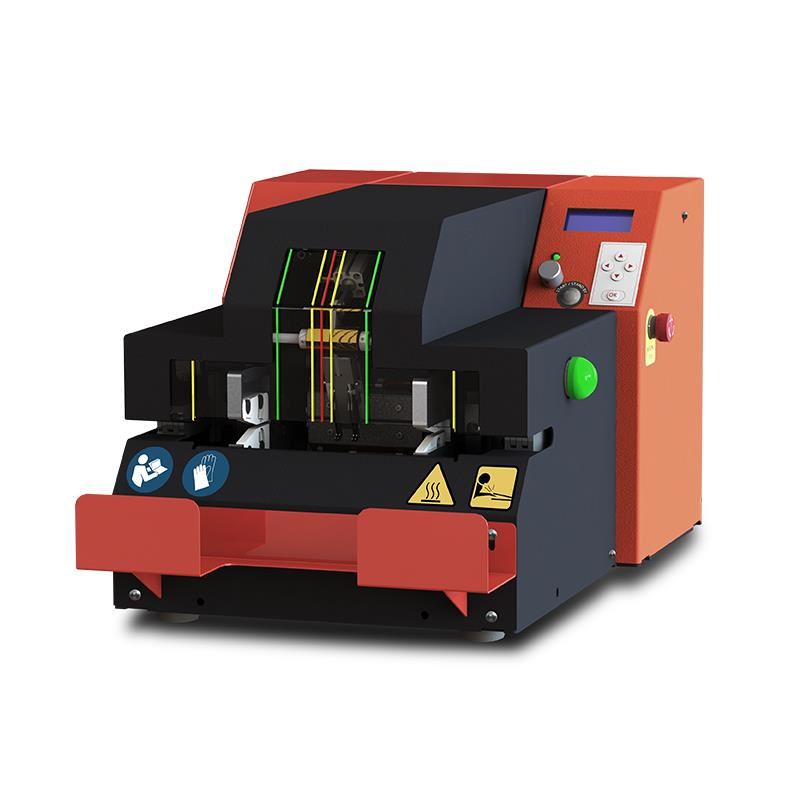

Mecalbi Stcs-Rcm Shrinking Tube Control System
For processing heat shrink tubesScope of application
Heat Shrink TubesThe STCS-RCM is a machine for processing heat shrink tubes, based on infrared resistors with an inbuilt automatic sleeve centering system. It’s designed for workbench applications and can process one part at a time.
It has an built-in communication system with ultrasonic welding machines and several operating modes.
The centering feature allows the automatic centering of the sleeve in the middle of the copper area (welded zone), in order to avoid incorrect positioned sleeves.
Working temperature Min.300°C - Max.550 °C
Dimensions 550x380x360mm
Power supply 230 V 60Hz
Weight 37kg
Connections
Barcode reader DB9 Male
Electrical grid 1 IEC Soket
Programming Membrane Keyboard, Barcode Reader, External Device
Interface LCD 16x4, Buzzer and LED
Shrinking chamber Ø32 x 77 [mm] (up to RBK4)
Additional chracteristic
Equipment mobility Stationary Equipment
Class Class I Equipment
Min. cable length 360 mm
Sleeve diameter maximum 21 mm
Sleeve length ( Min. / Max.) 45 mm / 75 mm
| Heat Shrink Tubes |
|
