Article number: 14-01-0005

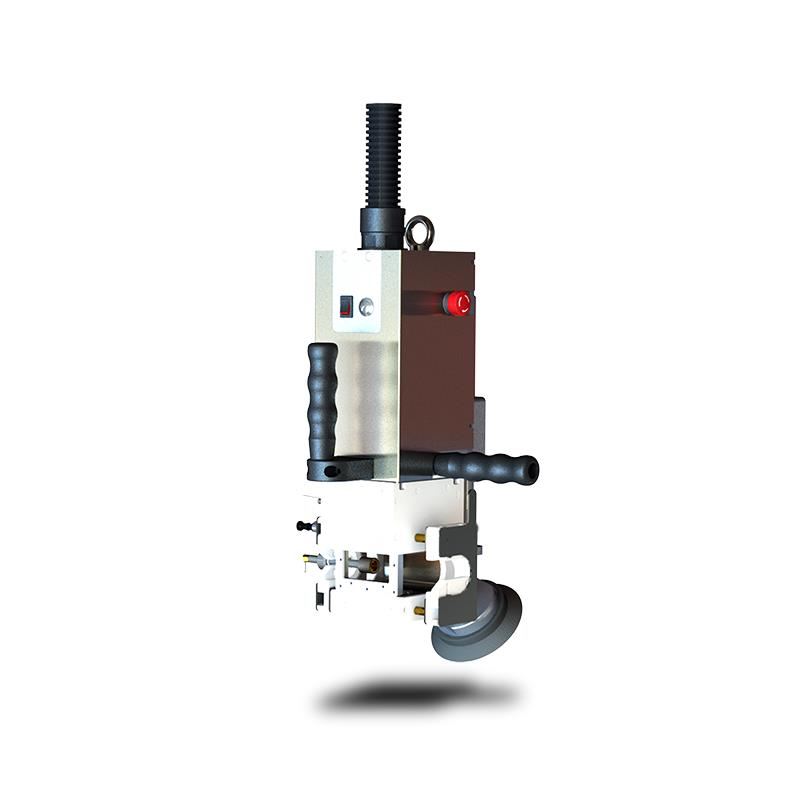

Mecalbi Stcs-Phd Shrinking Tube Control System
For processing heat shrink tubesScope of application
Heat Shrink TubesThe STCS-PHD is a machine for processing heat shrink tubes, based on hot air devices. It’s designed for line panel applications and can process one part at a time.The system is constituted by a control module for parameter definition and a hot air device for the
shrinking operation.It has several working configurations to easily
accommodate all panel applications.
Working temperature Min.150°C - Max.350 °C
Dimensions 440 x 240 x 190 mm
Power supply 230 V 60Hz
Weight 6 kg
Dimension control module 273 x 200 x 140 mm
Weight 3 kg
CONNECTIONS
Barcode reader DB9 Male
Temperature sensor K tipi Thermocouple
Power line and hot air 1 IEC Socket
Programming Membrane Keyboard
Interface LCD 16x2, Buzzer and LED
SHRINKING CHAMBERS AND CLAWS
Standard shrinking chamber L = 80 mm; Ø 30 mm
Large shrinking chamber L = 80 mm; Ø 30 mm
