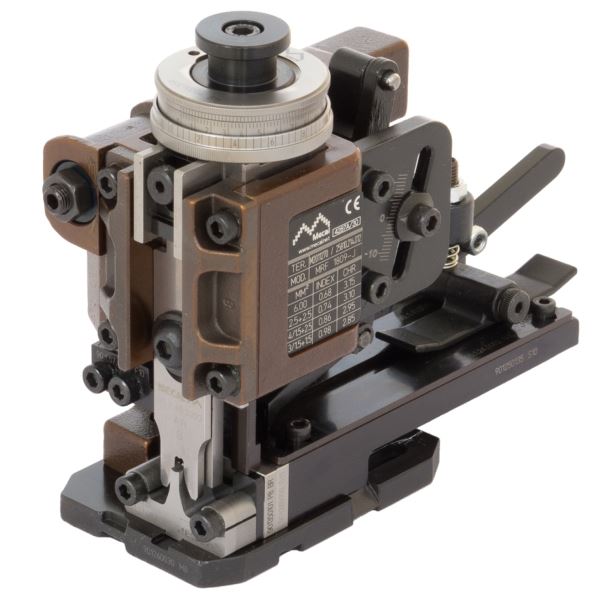

Mecal Mrf Restyling Applicator

Cable crimping applicator end-feed

Scope of application


The Restyling mechanical-feed applicator crimps on-reel terminals over wires of different sections.

Its newly conceive cast iron body grants great accessibility and easy adjustments, the replacement of the perishables is facilitated by having them bolted to the front of the tool.

The applicator's non-resettable 7-digit cycle counter facilitates the perishables lifetime evaluation, and two different feeding cams are supplied - for manual (terminal already on the anvil) or automatic (terminal not yet on the anvil) set up.

The Restyling can be ordered either in side-feed (MRS) or end-feed (MRF) configuration, either with the H adjusting head (AMP-style 4-pad) or the J continuous adjusting head (0.01mm resolution, 2.7mm range).

Special RSJ, RFJ, RSY and RFY configurations - fitted with adjusting head & fixing baseplate specifically engineered - are available to be fitted to presses with different shut-height, such asToyojamco JAM (121,00mm) and Yazaki (190,00mm).

Each applicator comes with a complete Data Sheet on a CD showing all the parameters & adjustments used during the final test, together with an exploded view of the tool and the part number of each component; the same datas can be found in the

Customer Area of Mecal's website.

Upon request, a Capability Test - which includes measurement of crimping height & pull-out force and a cross section micrography - can be supplied for the desired wire sections.

Crimping height                             135,8 mm (5,346")

Stroke                                               40/30 mm (1,575/1,18")

Terminal pitch                                < 27 mm(<1,06")

Terminal thickness                        < 1,2 mm (<0,047")

Wire section                                     max 10 mm²

Feeding systems                         Mechanical

Weight                                         4,0 kg (8,8Ib)

Dimensions (WxHxD)                  72 x 145,5 x 196,5

Dimensions (")                                 2,83" x 5,72" x 7,73"


Option  Continuous regulating head,  0,01mm(0,00039") resolution,  2,7mm(0,106") range
