Article number: V10AL000172

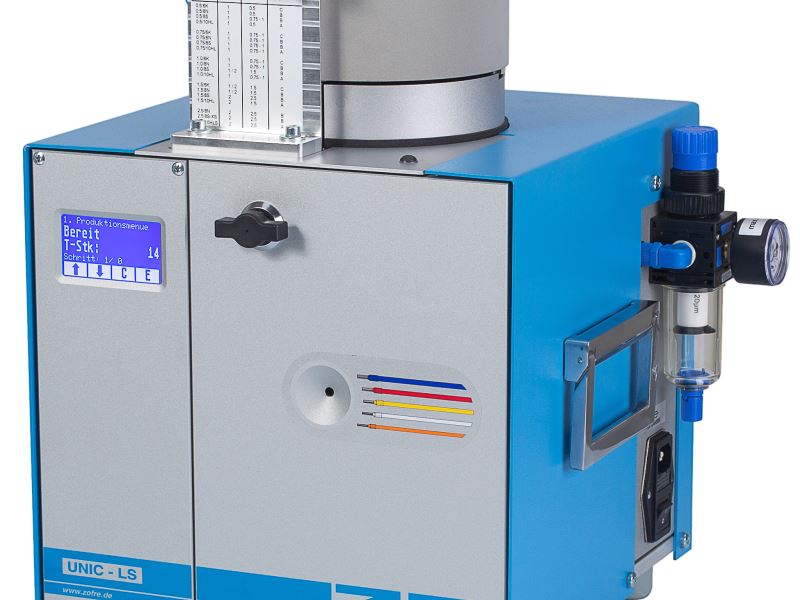

Z+F UNIC-LS Stripper Crimper
UNIC-LS stripper crimper machineThe UNIC-LS is an electropneumatic driven stripper-crimper.
This machine allows quick and reliable processing of loose insulated Z+F ferrules for cross-sections from 0.5 up to 2.5 mm2
(AWG 20 – 14) with a crimping length of 6, 8 and 10 mm.
Insulated Z+F ferrules for tri-rated wires (special size “S“) can also be handled.
Crimping range 0,5 – 2,5 mm² (20 – 14)
Crimping length CL 6/8/10 mm
Infeed length 27+CL mm
Cycle time approx. 1,5 sn
Power supply 100-240/50-60/110
Air pressure 5,5 bar
Dimensions(WxDxH) 390x330x460 mm
Weight 31 kg
| Ferrule Crimping |
|
| Full Strip |
|
