Article number: 14-01-0016

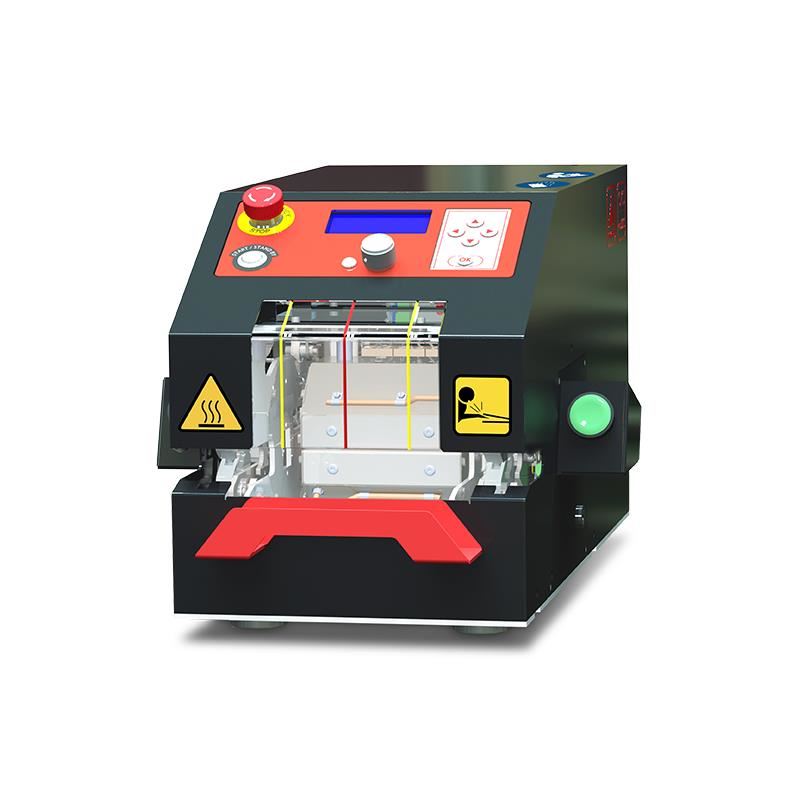

The STCS-evo500 is a machine for processing heat shrink tubes, based on infrared resistors.
It’s designed for workbench applications and can process one part at a time.
It has built-in communication with ultrasonic welding machines and several operating modes.
It can be supplied with an end-splice tool with cooling that doesn’t have to be removed when working with normal splices.
Working temperature Min.400°C - Max.550 °C
Dimensions 617x296x303mm
Power supply 230 V 60Hz
Weight 23kg
Connections
Barcode reader DB9 Male
Electrical grid 1 IEC Soket
Programming Membrane Keyboard
Interface LCD 16x2, Buzzer and LED
Shrinking chamber Ø32 x 77 [mm] (up to RBK4)
Addtional characteristics
Equipment mobility Stationary Equipment
Class Class I Equipment
Minimum cable length 230mm
Sleeve diameter max. 21mm
Sleeve length max. 75mm
Noise level Noise Level
